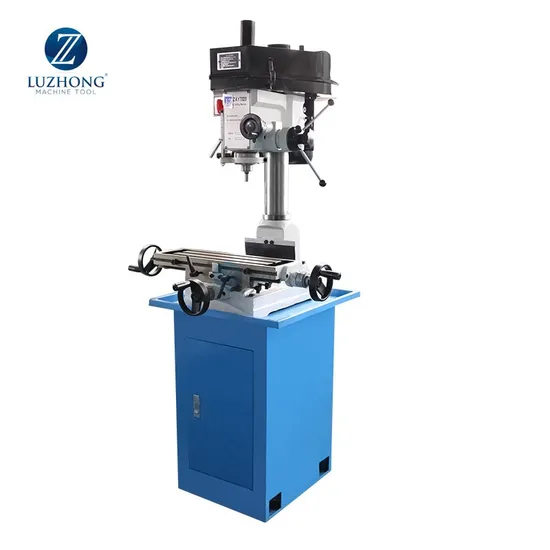

Vertical drilling and milling machine ZAY7045 Drilling and milling machine

Product Description

Vertical drilling and milling machine ZAY7045 Drilling and milling machine Product Description
Detailed Photos
Product Parameters
The main performance characteristics:
driven and round column
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positioning
Product main technical parameters:

Model		ZAY7020	ZAY7032	ZAY7040	ZAY7045
Drilling capacity		20mm	32mm	40mm	45mm
Face milling capacity		63mm	63mm	80mm	80mm
End milling capacity		20mm	20mm	32mm	32mm
Distance from spindle nose to table		435mm	450mm	450mm	450mm
Min.distance from spindle axis to column		181.5mm	203.5mm	203.5mm	203.5mm
Spindle travel		85mm	130mm	130mm	130mm
Spindle taper		M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed		12	12	12	12
Range of spindle speed	50Hz	100-2200 r.p.m	80-2080 r.p.m	80-2080 r.p.m	80-2080 r.p.m
	60Hz	120-2640 r.p.m	100-2500 r.p.m	100-2500 r.p.m	100-2500 r.p.m
Swivel angle of headstock (horizontally)		360°	360°	360°	360°
Table size		520×160mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table		140mm	175mm	175mm	175mm
Left and right travel of table		290mm	500mm	500mm	500mm
Motor Power		0.55KW	0.75KW	1.1KW	1.5KW
Net weight/gross weight		130kg/190kg	280kg/330kg	283kg/333kg	285kg/335kg
Packing size		620×750×1000mm	1020×820×1160mm	1020×820×1160mm	1020×820×1160

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
