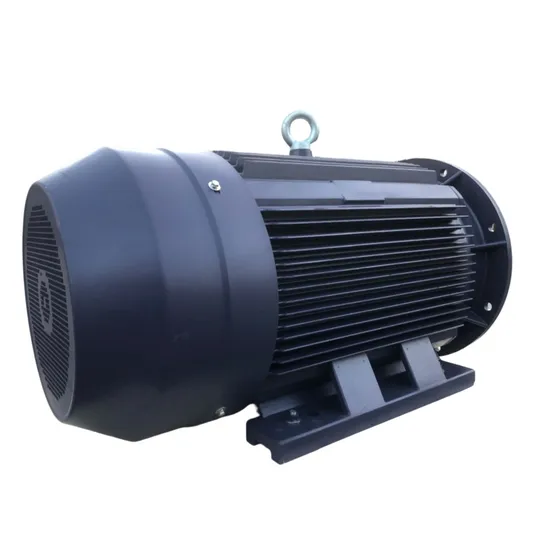

Three Phase Asynchronous motor is the AC motors, the modular for three phase motor offers millions of possible drive combinations.
For the high efficiency electric motor, we have YE3, YE4, YE5 series, from 0.75kW to 315kW. For different voltage, frequency and different power, we can do the customized.
| MOTOR TYPE | Asynchronous motor, YE3, YE4, YE5. |
| STRUCTURE | Iron Cast or Aluminum Housing, Customized. |
| PROTECTION CLASS | IP54, IP55. |
| INSULATION CLASS | Class F. |
| VOLTAGE | 380V, 400V, 440V, 660V, Customized. |
| FREQUENCY | 50Hz(60Hz Available). |
| EFFICIENCY | IE3, IE4, IE5, |
| OUTPUT POWER | 0.75kW~315kW. |
| PHASE | Three Phase. |
| POLE | 2pole, 4pole, 6pole, 8pole, 10pole. |
| COOLING METHOD | IC 411/Customized. |
| DUTY | S1 (24Hour continuous working). |
| AMBIENT TEMPRETURE | -15°C≤ 0 ≤ 40°C. |
| ALTITUDE | Not exceeding 1000m above sea level |
| MOUNTING TYPE | B3,B5,B35, V1, V3,Customized. |
| STANDARD | IEC International Standard, China CCC, ISO 9001, CE. |
| PACKAGE | Carton or Wooden Case, well protection, easy loading and delivery. |
| APPLICATION | Water Pump, Assembly line, Air Compressor, Packing and Food Machinery, Mill Machinery, fan, and other equipment. |
| WARRANTY | 1 year except for the wear parts. |
| DELIVERY TIME | 10-30 working days. |
