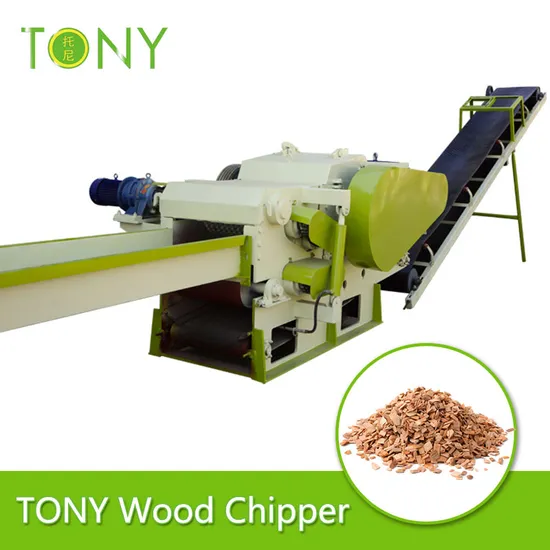

Tree Log Bamboo Chipping Machine Drum Wood Chipper with 7-10tph

Product Description

Tree Log Bamboo Chipping Machine Wood Drum Chipper with 7-10TPH
It is mainly used in biomass power plant, paper plant, wood chip factories and wood pellet plant.
Drum chipper is the production of wood products and special equipment, this product is widely used in particle board plants, medium and high density fiberboard plant, stubble plants, biomass power plant, wood chips and other industrial and manufacturing plant manufacturer preparation in section before the device of choice.'
Comprehensive Crusher Equipment can crush various raw material, such as, wood logs, wood with nails, timber, wooden pallet, building template waste, wood branches, waste furniture etc.
TONY Wood Chipper has high output, low energy consumption, the size of broken wood chips is uniform, uniform thickness, is a very cost-effective crusher
Working Principle
Basic workflow
1.Feed:The wood enters the drum chipper through the feed port.
2.Cutting:When the wood comes into contact with the cutting blade, it is cut with the high-speed rotation of the cutting cutter head. The high-speed rotation of the cutterhead allows the blade to cut the wood at a very high speed, resulting in thin, even wood chips.
3.Discharge:The cut wood chips are sent out in the cutting room by the high speed air generated by the wind blade on the cutting cutter head, and finally collected by the discharge device.

1-Feed Chute	2-Suspended Feeding Press Roller	3-Main Body	4-Main Motor	5-Cylinder
6-Cylinder	7-First Feeding Conveyor Belt	8-Pulley	9-Bottom Knife

Wide Range Of Application
Raw Materials to finished products:The raw material include wood log, wood branches, wood block, wood board, branch material, plate skin, waste veneer, wooden waste, bamboo, cotton straw and other wood fiber rods, and it can cut these materials in different wood chipper size.
With advanced structure and special blades layout, the drum wood chipper is technically suitable for undersized logs processing.
In fact, the drum wood chipper can process a variety of materials. The common raw materials for the drum wood chipper are undersized wood logs, wood branches, wood barks, waste board.
The materials after the wood chip machine crushing can also be widely used to do biomass particles, wood-based panels, wood furniture factories, organic fertilizer and other primary raw materials, can also be used in paper mills, power plants, textile mills, etc., in addition, it is necessary for the mechanical equipment in landscaping work, ground-free operation,The equipment can be operated on the ground, powerful function and high efficiency.
Product Characteristics
1. High productivity
The drum wood chipper is designed so that the wood can obtain continuous rotating motion inside the machine while high-speed slicing is performed. This allows it to process a large amount of wood per unit time, improving production efficiency.
2. High slice quality
The slicing process is carried out on a continuously rotating drum, which enables the wood to be fully rotated during the slicing process, thus making the slicing more uniform and smooth.
3. Strong adaptability
Drum wood chippers can handle a variety of different types and sizes of wood, whether softwood or hardwood, to efficiently complete the slicing task. This makes the drum chipper has a wide range of applicability.
4. Easy to operate
The operation of the drum wood chipper is relatively simple, and because of its high degree of automation, many operations can be completed by simple buttons or control panels.
5. High security
It is usually equipped with complete safety protection devices, such as wood blockage sensors, emergency stop buttons, etc., which reduces safety risks during operation.
6. Easy maintenance
The structure of the drum wood chipper is relatively simple, and it is convenient to maintain. When you need to replace the blade or perform other maintenance work, you do not need to remove the entire machine, but only need to operate specific parts.
7. Strong durability
Made of high quality materials, the structure is strong and can run stably for a long time. At the same time, its simple design also makes its parts more convenient to replace, thus extending the service life of the whole machine.
8. Low environmental impact
The noise and vibration generated during operation are relatively small, and the impact on the surrounding environment is small.
9. High economy
Although the purchase cost of drum wood chipper is relatively high, its operating cost in the long-term use process is relatively low. Due to its efficient slicing capacity and low energy consumption, it can help enterprises save a lot of production costs.
10. High degree of automation
Drum wood chipper is usually equipped with a variety of automatic functions, such as automatic feeding, automatic adjustment of slice thickness, automatic unloading, etc., which reduces the labor intensity of workers and improves production efficiency.
TONY drum wood chipper with its high efficiency, stability, energy saving, safety and other characteristics, in the wood processing industry occupies an important position.
Product Parameters

TONY Wood Chipper Type Models
Name	Model	Power	Capacity	Fly Knives QTY	Inlet Size Width*Length*Height	Max Processing Diamater	Out Chips Size	Weight	Main Machine Machine Size
1	TPQ216	55KW	4-7TPH	2Pieces	50cm*4.5m*50cm	20CM	25-55mm-Adjustable	4.8T	5800*1900*1200MM
2	TPC1000	90KW	7-10TPH	6Pieces	1m*4.5m*50cm	25CM	25-55mm-Adjustable	9.8T	8100*1400*2125MM
3	TPC1000	110KW	8-10TPH	6Pieces	1m*4.5m*50cmChain Inlet	25CM	25-55mm-Adjustable	9.8T	8100*1400*2125MM
4	TPC1300-600	132KW	10-15TPH	6Pieces	1.3m*4.5m*60cm Chain Inlet	30CM	25-55mm-Adjustable	13.8T	9100*1900*2220MM
5	TPC1300-600	160KW	12-15TPH	6Pieces	1.3m*4.5m*60cm Chain Inlet	30CM	25-55mm-Adjustable	13.8T	9100*1900*2220MM
6	TPC1400-600	200KW	14-20TPH	6Pieces	1.4m*4.5m*60cm Chain Inlet	35CM	25-55mm-Adjustable	17.8T	10100*2400*2525MM
7	TPC1400-600	220KW	15-20TPH	6Pieces	1.4m*4.5m*70cm Chain Inlet	35CM	25-55mm-Adjustable	17.8T	10100*2400*2525MM
8	TPC1400-700	250KW	20-30TPH	6Pieces	1.6m*4.5m*1mChain Inlet	35CM	25-55mm-Adjustable	17.8T	11100*2400*2525MM
9	TPC1600-1000	315KW	25-35TPH	6Pieces	1.8m*4.5m*1mChain Inlet	40CM	25-55mm-Adjustable	25.8T	12100*2400*2825MM
10	TPC1850-1000	355KW	30-40TPH	6Pieces	1.8m*4.5m*1.2m Chain Inlet	40CM	25-55mm-Adjustable	35.8T	13100*2500*2925MM
11	TONY8000	400KW	35-80TPH	6Pieces	1.8m*4.5m*1.5m Chain Inlet	55CM	25-55mm-Adjustable	55.8T	14100*2800*3125MM
12	TPQ81138	560KW	40-50TPH	6Pieces	1.3m*4.5m- Belt Inlet	40CM	25-45mm-Adjustable	32.8T	15100*2570*1933MM
13	TONY10000	630KW	50-100TPH	6Pieces	1.8m*4.5m- Chain Inlet	60CM	25-55mm-Adjustable	65.8T	15100*3000*3225MM

Detailed Photos
We provide some free spare parts, such as blades, belts, washers and other small parts, because blades, hammer, bearings and other important wear parts, we recommend customers to buy some appropriate to save freight, we have enough spare parts, now in stock. Our Advantages
Packaging & Shipping
Customer Case
FAQ:
1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China.You can fly to Jinan airport and then we will pick you up(40 minutes by car) .All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality.controlling from the very beginning to the very end. Our factory has gained CE authentication.
4. Q:How about price of this product?
A:We do quotation as soon as possible ,Before quotation, we first need to know what your raw materials are, what is the capacity you want, and choose the right model for you according to your situation
5. Q: lf you can be custom-made?
A:We can make products according to customer's requirements.

---
