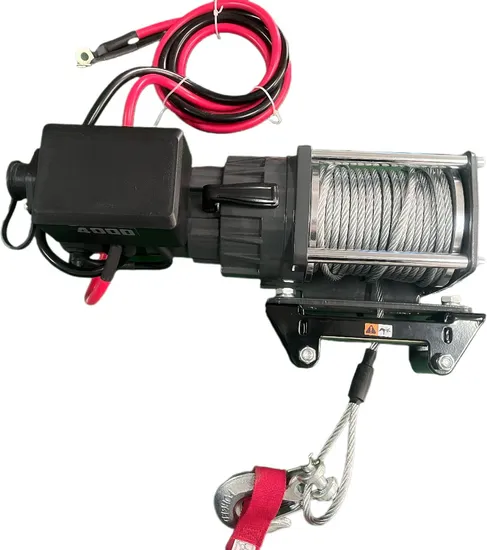

4000 DC 12V Electric Winch

Product Description

The 4000 DC has heavy-duty pulling power; perfect for loading a heavy vehicle onto a trailer or winching the big loads at work. With durable steel rope, a roller fairlead, and a sturdy remote control, this winch is ready to go to work.
Specifications
Rated line pulls: 4000 lbs. (1814 kg)
Motor: Permanent magnet motor (Input Power)1.61 hp / 1.2kw (DC 12V)
Switch type: Remote with 12'(3.7m)Lead
Drum size: Ø 2.38" x 4.35 in(Ø 60.5 x 110.5 mm)
Hole pattern: 3 holes
Gear reduction ratio: 176:1
Overall dimensions: 15.90" x 6.79" x 4.98 in (404 X 172.5 X126.6 mm)
Gear Train: 3 stage plantary
Clutch: Lever-Muti-directional
Brake: Dynamic and mechanical braking
Fairlead: Roller
Electrical Leads: 2-6'(1.8m) X6 gauge cable
Rope: Ø 4/17" x43'(Ø 6.0mm x 13 m )
Mounting bolt pattern: 2.5"x 3"(63.5 x 76 .2 mm)
12V DC PERFORMANCE SPECS(first layer)

Line pull	Line speed	Motor	Pull by layer
lbs. (kg)	ft/min (m/min)	Current	Layer/Lbs.(kg)
0	17.4 (5.3)	40 amps	1/4000 (1814)
500 (227)	15.4 (4.7)	65 amps	2/3410 (1547)
1000 (454)	13.8 (4.2)	90 amps	3/3170 (1438)
1500 (680)	12.8 (3.9)	110 amps	4/2950 (1338)
2000 (907)	11.5 (3.5)	135 amps
2500 (1134)	10.5 (3.2)	160 amps
3000 (1361)	9.5 (2.9)	180 amps
3500 (1588)	9.2 (2.8)	195 amps
4000 (1814)	8.2 (2.5)	215 amps
4500 (2041)	7.2 (2.2)	240 amps
5000 (2268)	5.9 (1.8)	280 amps
5500 (2495)	4.6 (1.4)	315 amps

Mounting plate Roller fairlead Wired remote control 5/16 Hook FAQ
1.What's your product range?
Electric winch
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry .
3.How can I get a sample to check your quality?
After price confirmation, If you need the samples, you need pay the express fee and the sample cost
4.What about the lead time for mass production?
we can sure within 15-20 days delivery time, but depends on the quantity !

---
