US$10,000.00-50,000.00
|
1 Set
(MOQ)
|
Basic Info.
Application
Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Food
Certification
CE, ISO, CE, ISO9001, Nb/T 47003.1-2009, GB150-2011"
Control System
Touch Screen Control
Cooling Method
Water Cooling
Heating Method
Steam Heating
Main Material
Aluminum, Stainless Steel
Quick Details Place of Origin
1 Year
After-Sales Service Provided
Video Technical Support, Online Support
Applicable Industries
Applicable Industries:
Key Selling Points
Key Selling Points:
After Warranty Service
Online Support
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product
Warranty of Core Components
1 Year
Manufacturing Process
Be Equipped with Jacket and Insulation Layer
Scope of Application
Tea, Chinese Herbal Medicines
Surface Treatment
Electrical Polish, Mirror Polish, Sand Polish
Transport Package
Export Package
Specification
1600*1200*3550
Production Capacity
200 Set/Sets Per Month
Packaging & Delivery
Package Size
3000.00cm * 2000.00cm * 3000.00cm
Package Gross Weight
800.000kg
Product Description
Product DescriptionApplication:
Other
Model Number:
JTSJM-150Warranty:
1 Year for machinery warranty|1 Year for Core ComponentsShipping:
Support Sea freight
Lead Time:
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 30 | Negotiable |
Customization:Customized logo (Min. Order: 1 Sets)Customized packaging (Min. Order: 1 Sets)Graphic customization (Min. Order: 1 Sets) Less

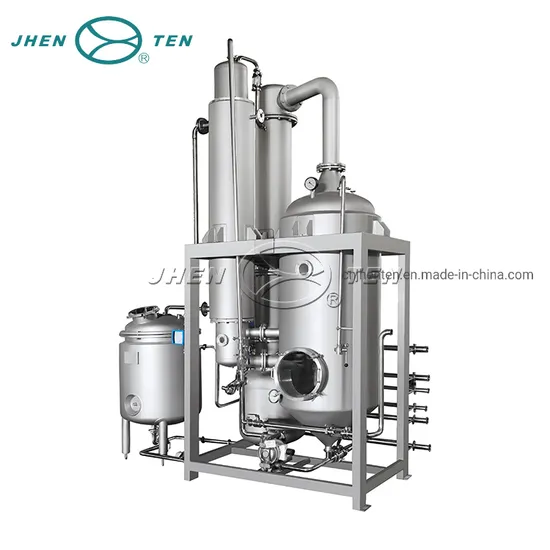

Equipment composition
Heaters, separators, condensers, preheaters, vacuum systems, heat pumps, electrical meters, control cabinets, etc. 304 or 316L is determined according to the material process requirements.
Features
1. The material has a short residence time in the heating tube, which is especially suitable for the concentration of heat sensitive materials, and can be continuously fed and continuously discharged.
2. The evaporation temperature is low, and the efficiency and evaporation temperature can be selected according to customer requirements.
3. Heating the evaporator top spray film device is unique, and the film formation is uniform.
4. The condenser has a unique structure. a large heat transfer coefficient and good effect.
5. The injection heat pump is adopted, and the energy saving effect is obvious.
6. According to customer requirements, both automatic control and manual control can be adopted.
Product Parameters
Main parameters
| Model | JTSJM-150 | JTSJM-250 | JTSJM-500 | JTSJM-1000 | JTSJM-1500 |
| Capacity(Ethanol)(L/H) | 150 | 250 | 500 | 1000 | 1500 |
| Evaporate temperature(ºC) | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 |
| Heater Jacket pressure(Mpa) | | | <0.3 | | |
| Condenser Pressure(Mpa) | | | <0.3 | | |
| Heat trans surface(m²) | 6.5 | 30 | 30 | 55 | 80 |
| Condenser surface(m²) | 9.5 | 35 | 35 | 65 | 100 |
| Steam consumption(KJ/H) | 250000 | 795000 | 795000 | 1600000 | 2390000 |
| Cooling capacity(Kcal/H) | 8200 | 23500 | 23500 | 4500 | 67000 |
| Vacuum pump power(KW) | 3 | 7.5 | 7.5 | 11 | 15 |
| Circle pump flow capacity(T/H) | 6 | 20 | 20 | 40 | 60 |
| Dimension(mm) | 1600*1200*3550 | 2600*1600*5900 | 2600*1600*5900 | 3200*1800*7800 | 3500*2200*9500 |
