Household Paper Packaging Equipment, Hot Sale Automatic Cube Box Facial Tissue Packing Machine

US$35,000.00 1 sets (MOQ)

Basic Info.

Model NO.

ST-100F

Application

Tissue

Type

Tissue Packaging Machine

Forming Species

Box Molding

Forming Function

Tissue Packaging

Driven Type

Electric

Material Type

Tissue

Packaging

Tissue Box

Packaging Material

Paper

Usage

Fill Paper Tissue to Carton and Close or Seal

Packaging Type

Cartons

After-Sales Service Provided

Engineers Available to Service Machinery Overseas

Machine Name

Automatic Box Facial Tissue Packing Machine

Dimension(L*W*H)

3600X1900X1600mm

Packing Speed

50-80 Boxes/Min

Weight

2000kg

Packing Material

Paper

Certification

CE Certificate

Name

Facial Tissue Packing Machine

Function

Automatic Fill and Seal or Close Carton

Applicable Industries

Hotels, Restaurant

Product Name

Facial Tissue Paper Box

Voltage

380V/50Hz

Transport Package

Export Standard Wooden Case Packing

Trademark

SHENGTAI

Origin

Zhejiang, China

HS Code

8422309090

Production Capacity

20 Set/Sets Per Month

Product Description

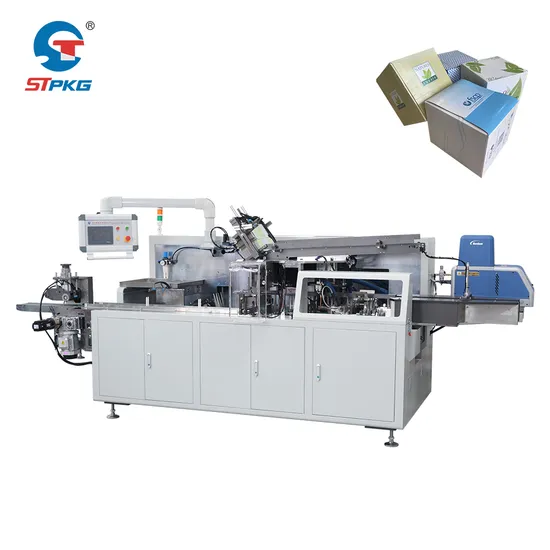

Hot Sale Automatic Cube Box Facial Tissue Packing Machine

Product Description
Product profile Performance technical parameters:

Item/model		ST-100F
Paper quality of carton		350-400g/m³
Maximum packing specification		L115mm×W115mm×H130mm
Packing speed		30-70 boxes/min
Hot melt machine power		4KW
Motor power		2.7KW
Total power		6.7KW
Power supply type		3phase 4wire 380V 50Hz
Machine noise		≤80dB
Air supply		0.5-0.8 Mpa
Air consumption		120-160L/min
Outline dimensions	Main machine	L4312×W1300×H1800mm
	Conveying mechanism	L2000×W660×H1200mm
Machine weight		2500Kg

Electrical List:

Item	Name	Brand	Country
1	Touch screen	Omron	Japan
2	PLC	Panasonic	Japan
3	Encoder	Omron	Japan
4	Combination switch	Schneide	French
5	Frequency	Panasonic	Japan
6	photoelectric switch	SICK	Germany
7	proximity switch	Omron	Japan
8	Intermediate Relay	Omron	Japan
9	Breaker	Schneide	French
10	Button switch	Schneide	French
11	AC contactor	Schneide	French
12	Emergency stop switch	Schneide	French
13	Switch power supply	Delta	Taiwan
14	Air switch	Schneide	French
15	Magnetic valve	JELPC	Germany
16	Vacuum generator	JELPC	Germany
17	Vacuum cup	AIRBEST	Swiss
18	Decelerating motors	HANXING	China
19	Servo Motor	Delta	Taiwan
20	Conveyor motor	DELI	China
21	Timing belt	SONTIAN	Japan
22	Timing belt	EHRE	Germany

(This list is for reference only,in the actual production there may be some difference with this list)
