Product Details
Product Description
Product Description
Product Introduction

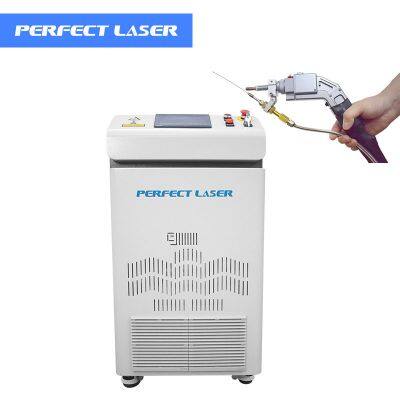

Perfect laser handheld laser welder is composed of an integrated cabinet, fiber laser source, refrigerating water circulation system, laser control system and a hand-held laser welding head.
Compared with traditional welding methods, the integrated design of handheld laser welder not only reduces the difficulty of welding operation, but also greatly improves the efficiency and quality of welding.
It makes the welding work easier, the welding speed is faster, and the quality of the finished product is better.
This handheld laser welder is widely used in metal advertising characters welding, stainless steel engineering welding, sheet metal cabinet welding and welding of large sheet metal structures.
Product Features
1. The handheld laser welder occupies a smaller area and is flexible and convenient. The laser source, water tank, and control parts are integrated together, occupying a smaller area and requiring low site requirements. It is equipped with movable pulleys, and the working position can be adjusted at any time according to the site requirements, which is convenient and flexible.
2. The handheld laser welder has good welding quality and firm welding seam. The continuous laser mode has smooth welding seam transition, no fish scales, and strong welding seam. There is no need for secondary grinding treatment, which reduces labor and time costs.
3. The laser welding machine for stainless steel is flexible and convenient, and can weld at will. It has a hand-held laser welding head, which is light and flexible, and can weld any part of the workpiece.
4. The handheld fiber laser welding machine metal has small restrictions on the size and space of the workpiece, and it is not easy to fatifter long-term work.
Application
1. Applicable Materials：
This handheld laser welder is suitable for welding many kinds of metals, including: stainless steel, aluminum alloy, galvanized sheet.
2.Applicable industries:
The handheld laser welder is widely used in the welding of metal advertising characters, stainless steel engineering welding, sheet metal cabinet welding and welding of large sheet metal structures.
Technical Data
Machine Name
| Handheld Metal Fiber Laser Welding Machine
|
Model
| PE-W1000G
| PE-W1500G
| PE-W2000G
|
outpower
| 1000W
| 1500W
| 2000W
|
Input voltage
| 220V / 50HZ / 20A
| 380V / 50HZ / 40A
|
Laser type
| Fiber Laser
|
Adjustable line width
| 0-5mm
|
Output laser power adjustment range
| 10%-100%
|
Laser wavelength
| 1070nm
|
Output fiber length
| 10m
|
Fiber bend radius
| 100mm
|
Way of working
| Continuous/modulation
|
Welding speed range
| 0-120mm/s
|
cooling method
| Built-in cold water
|
Working environment temperature range
| 15-35℃
|
Relative humidity range of working environment
| <70% without condensation
|
Welding gap requirements
| ≤0.4mm
|
Welding thickness
| -
| 0.5-3mm
|
Automatic wire feeder
| -
| 0.8-1.2mm (Random 1.0mm)
| Within 1mm
|
Product training
| Perfect Laser provides professional manuals and training videos
|
Product Warranty
| 12 months
|
>>
