PAD AC Electric Fan Motor for Superior Efficiency PM-100L1-4 2.2kw 4p

Product Description

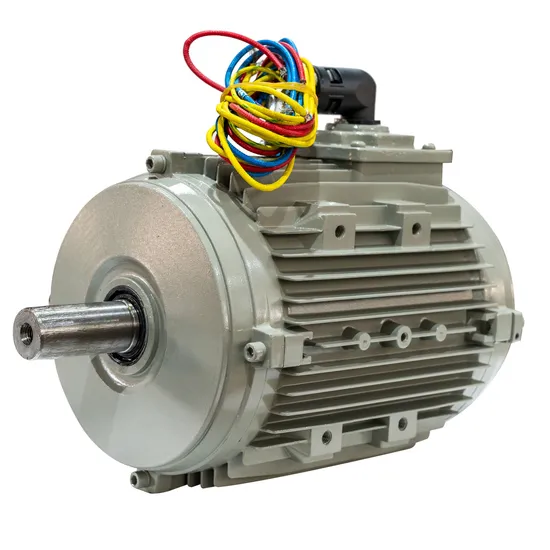

Pad Motor
The ms series three - phase asynchronous motors are totally - enclosed self - fan - cooled squirrel - cage type.The entire motor body is formed by aluminum alloy die - casting, making it lightweight. The motor specifically designed for fans. These motors are designed without feet and are installed through four lugs on the body. They can be processed into different mounting dimensions, which makes installation convenient. The fans can effectively reduce wind resistance, so this series of motors is widely used in the fan industry.Detailed Photos
Product Parameters

Frame size	D	E	F	G	DH	AC	M	J	I	L1	L2	L	Md	KK
63	11	23	4	8.5	M4	118	68	91	40	60	61	181	12-M6	M20*1.5
71	14	30	5	11	M5*13	139	82	110	48	62	68	208	12-M6	M20*1.5
80	19	40	6	15.5	M6*16	157	92	124	47	82	78	244	12-M6	M20*1.5
90S	24	50	8	20	M8*20	176	100	138	48	81	82	262	12-M8	M20*1.5
90L	24	50	8	20	M8*20	176	100	138	48	105	82	286	12-M8	M20*1.5
100L	28	60	8	24	M10*20	196	116	146	64	98	80	316	12-M8	M20*1.5
112M	28	60	8	24	M10*25	220	128	164	74	100	82	336	12-M8	M25*1.5
132S	38	80	10	33	M12*30	258	156	194	75	95	90	371	12-M8	M25*1.5
132M	38	80	10	33	M12*30	258	156	194	75	133	90	405	12-M8	M25*1.5

Applications
Suitable for construction machinery, mining equipment, large agricultural equipment fans, pumps, compressors and other industrial equipment

Our Service

Company Profile

Our Company

TEST CENTER

Our new laboratory has a strong experimental capacity, including three-phase AC asynchronous motor, variable frequency adjustment motor, AC synchronous motor, single-phase asynchronous motor. Power range :0.25-500KW, frequency :0-500Hz. Can test all motor performance items, high precision and simple control.

EXHIBITION

Certifications
FAQ
Q Are you a factory or trading company?A We are manufacturer located in FuZhou,Fujian,China Q Do we make special custom motors?A Yes sure Q What is your delivery time?A Normally, we can deliver the goods within one month. If we need to expedite the delivery, we can deliver the goods within 7-15 days Q What's our minimum order quantity?A Minimum order for 1 set Q How long is our shelf life?A 12 monshs Q Can I get a lower price if I order large quantities?A Yes, cheaper prices with more bigger quantity orders. Q How can you guarantee the production quality ?A We checked strictly before sending, will produce free of charge if it is quality problem from our side

---
