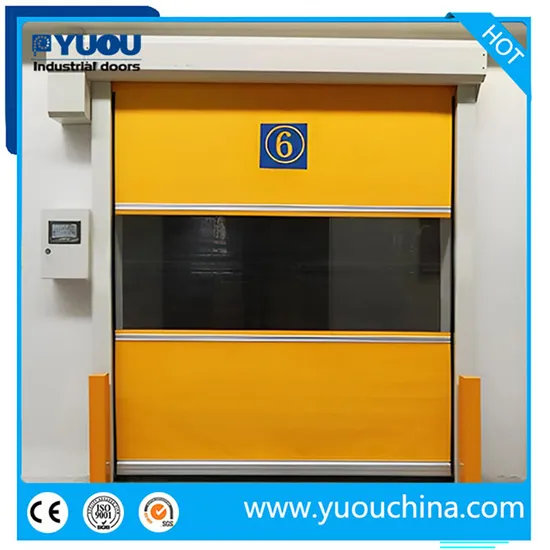

Industrial PVC High Speed Shutter Door

Product Description

Description High efficiency intelligence and safety make it widely used in food, chemical, textile, electronics, supermarket, cold storage, logistics, warehousing and other production efficiency, dust-free and high temperature level requirements. Technical data:

PVC servo rapid action high speed door
Max dimension	width * height 6000mm*6000mm
Power supply	220±10%V, 50/60Hz. Output power 0.75-1.5KW
Normal speed	open1.2m/s close 0.6m/s
Max speed	open 2.5m/s close 1.0m/s
Opening frequency	1000 times /day
Wind resistance	28m/s (Class 10)
Air tightness	leakage through the door is 95m³/hour under 30 pa pressure

Structure Diagram: Product Details: 1. PVC Fabric: A.Material:PVC Fabric;Standard 1.0mm thick(950g/sqm); B.Available thickness:1.2mm-1.5mm;Flameresistant material.
2. Frame and tracks: Two guide rails,one top cover and one motor cover included.Thickness:1.5mm for guide rail,1.0mm for cover box. A.Standard material:Galvanized steel,surface is painted.
B.Optional material:304 stainless steel or aluminum alloy. 3. Motor and Controller: A.Italy servo technology motor.More stable and quicker response. B.Italy servo technology controller with English interface,easy to use.
C.Double encoder,absolute encoder+inbuilt incremental encoder,more accurate and few maitenance. 4. Colors:Blue\Yellow\Orange\Grey\White\Full clear\Green 5. Safety devices(Below three devices are included as standard): A.Safety photo cell sensorWhen there is human or vehicle under the door,the door will stop closing and get up automatically.Thiswill avoid accident collisions. B.Safety bottom airbag sensor When the bottom bar of the door touches something,it will stop closing immediately and get up automatically. C.Alarm light and emergency buttons The lamp flashing to warn passing human or vehicles.And buttons on both side.
6. Operation methods:
Vehicle loop detector,Radar sensor,Push button,Pull switch,Remote control You will receive: Products real shot:

---
