Four-Layer Rubber Tile Vulcanizing Press Machine/Interlock Rubber Floor Curing Equipment

Product Description

Four-layer Rubber Tile Vulcanizing Press Machine/Interlock Rubber Floor Curing Equipment
1-Rubber mixer:

Purpose: it is mainly use to mixing rubber granules, pigment and glue.
Diameter: 850mm
Depth: 320mm
Motor power: 2.2kw.
Production capacity: 180L/batch.
Quantity: 1 sets
2-Barrel Mixer:
Motor power: 3kw
Input: Rubber granules(powder), pigment.
Output: mixture of all input
Capacity:50L/batch
Feature: 4 barrel can use to mix different colors.

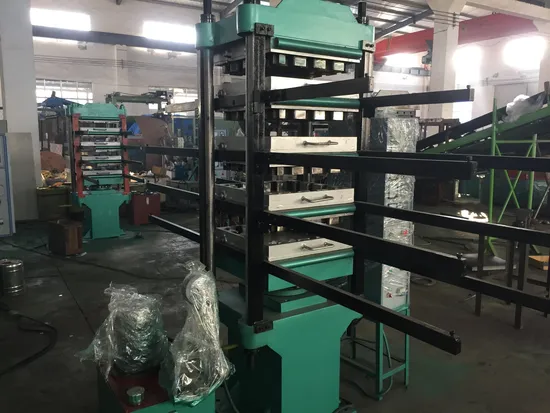

3-rubber tile vulcanizing machine:

Item	XLB-D550*550*4 vulcanizing machine
Total pressure	MN	0.50 (50 tons)
Hot plate size	MM	550*550*60
Plate clearance	MM	150
Working layer	layer	4
Hot plate quantity	Piece	5
Piston stroke	MM	400
Piston quantity	Set	1
Piston diameter	MM	200
Structure mode		Four columns
Operation system		Manual operation
Working pressure	Mpa	1.65 (16.5kg/cm2)
Motor power	KW	2.2
Note: 1-The vulcanizing machine is mainly use to produce rubber tile, Each working layer equipped with two sets molds, it can take turn vulcanization. Thereby improve production efficiency. 2-The machine has automatic fill pressure, alarm and curing time Etc. 3-Production capacity: it will produce about 40-48 SQ.M of rubber tiles in 8 hours.
