Powder Granule Paste Multilanes Filling Sealing Packing Machine

Product Description

Powder Granule Paste Multilanes Filling Sealing Packing Machine
Product Description
Powder Granule Paste Multilanes Filling Sealing Packing Machine
1.Multi lanes machine can produce multi lanes bags at same time.
2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3.Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
6. PLC controller, high function and control the whole machine's work steps.

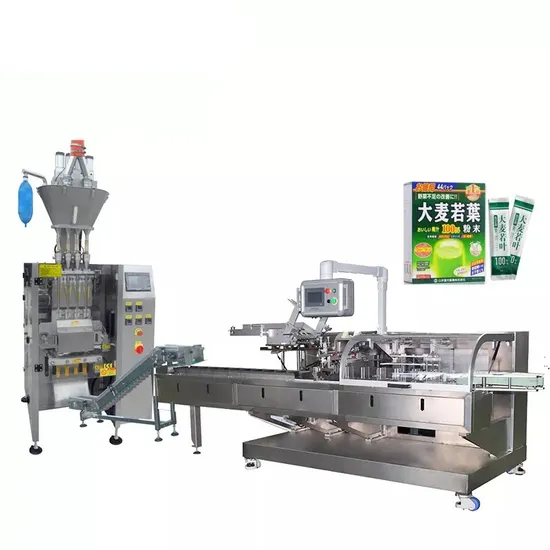

Detailed Photos
Powder Granule Paste Multilanes Filling Sealing Packing Machine
Product Parameters
Powder Granule Paste Multilanes Filling Sealing Packing Machine

Model	ST-DL280	ST-DL480	ST-DL720	ST-DL960
Cutting Type	1.Flat Cutting, 2.Zigzag Cutting, 3.Continuous Cutting, 4.Customized Special Shape Cutting
Packing list number	2-4 lanes	4-6 lanes	4-8 lanes	4-12 lanes
Packing speed	20-40 Bags/Min/Lane	20-40 Bags/Min/Lane	20-40 Bags/Min/Lane	20-40 Bags/Min/Lane
Packaging size	L: 50-180mm W: 17-30mm	L:50-180mm W:35--60mm	L:50-180mm W:35--90mm	L:50-180mm W:35-120mm
Film width	280 mm	480mm	720mm	960mm
Film thickness	0.05-0.1mm
Dimension	1350*1085*2150mm	1560*1250*2650mm	2015*1484*2850mm	2015*1986*3150mm
Optional device	Date Coder, Air-filling Device, Tear Notch Device
Control System	PLC + Servo + Touch Screen
