900 mm Width Harvesting Machine Sweet Potato Peanut Cassava Garlic Carrots Combine Harvester for 55-80 HP Farm Mini Walking Tractor

Product Description

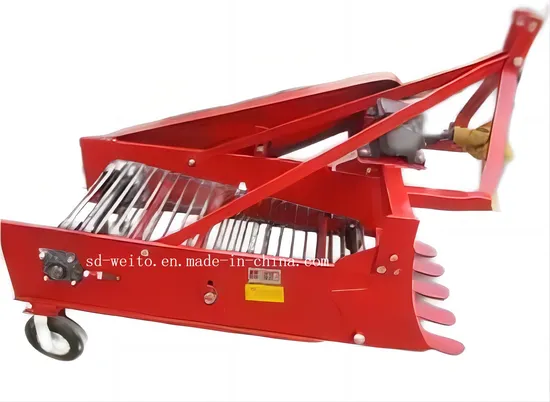

4U series Potato/ Peanut/sweet potato/garlic Harvester for 20-120 HP tractor
Potato harvester also known as potato harvester, sweet potato harvester. After many years of experiments, the effect is good. It can adapt to all kinds of soil, and can also harvest sweet potato, peanut, garlic, onion, taro and other crops. The machine has the following features: 1: Quick soil leakage, no peeling and no fruit dropping, and the rate of bright potato is high 2: The recovery of residual film is clean, the harvest does not squeeze grass and soil, and the work is smooth 3: The conveyor chain is specially designed and durable 4: It can be used in all kinds of soil 5: The frame structure is light, durable and easy to install
Scope of application:Garlic, potato, potato, sweet potato, sweet potato, garlic, etc

Model	4U-600	4U-700	4U-800	4U-900	4U-1300	4U-1600
Row number	Single row(casting)	Single row(casting)	Single row(casting)	Single row(Casting)	Double row(casting)	Double row(casting)
harvester width (cm)	55-80	50-80	55-80	55-80	55-80	55-80
Productivity efficiency (mu /hr)	1-3	3-5		5-8		8-15
Total weight(Kg)	195	225	260	295	390	430
(Matching power(HP)	20-35	35-45	45-55	50-80	80-90	90-120
Working depth(cm)	25	25	25	25	25	25
(m)Working width(m)	0.65	075	0.85	0.95	1.30	1.65
Potato-exposing rate(%)	≥96
Breakage rate(%)	≤2
REV of power take-off shaft(RPM)	540/1000	1000	540/1000	540	540	540
Overall dimension(cm)	180*100*98	190*70*70	190*100*75	230*220*100	280*220*100	330*390*310
(cm)Packing dimension(cm)	165*85*45	185*70*65	150*90*70	220*190*45	220*190*45	260*220*100

HARVESTING PHOTOS FOR POTATO AND PEANUTS
----------Product Introduction---------
Product Introduction---------

PACKAGE
OUR CERTIFICATE
ISO 90001 &CE Approval .
8.our main products :
it includes walking tractor (power tiller)8-25hp ,wheeled tractor ,driven by single cylinder diesel engine 15-30HP;crawler tractor (40-110HP),Wheel tractor driven by multi-cylinder diesel engine (20
-240hp).can match kinds of farm implements .
9.kinds of farm implements and tools
10.Questions
1)how long is the warranty time ? it is 12 months since the date of B/L ;
2)how long is the delivery time ? it is about 20-30days normally since the date of 30% deposit.
3)what is the payment terms? the L/C at sight or Payment in Cash by T/T is acceptable .
4)what is the service life ?it is more than 8 years ,if the baler has a good maintanence as the manual .
5)how to order the baler? if you need it ,contact with our business manager who will take you a good solutions as your requirements .
6)how about the spare parts ? can get the spare parts from the local dealer or agent ,or directly order it from our factory .

---
