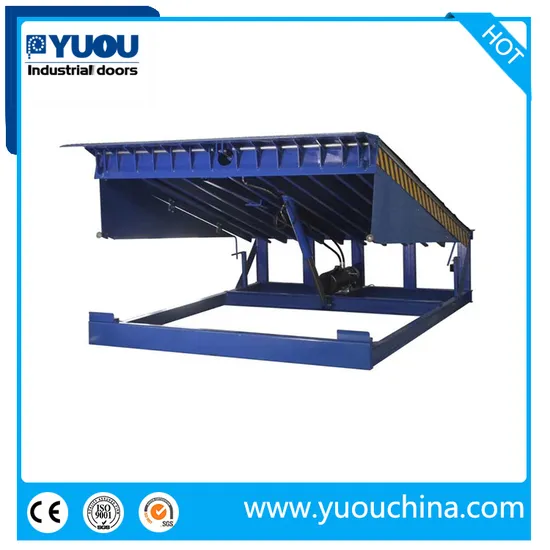

Industrial Adjustable Stationary Manual Fixed Warehouse Platform Hydraulic Swing Lip Truck Container Loading Bay Ramp Dock Leveler

Product Description

Description:
Dock levelers are widely used for docks, platforms, warehouses, etc., and the height adjustment can realize the seamless docking of the platform and trucks. The forklift can directly enter the truck through it. Carry out loading and unloading operations.
Technical data:

Dock Levelers
Power supply	1Phase 220V or 3 Phase 380V
Loading capacity	6t, 8t, 10t,15t
Adjust scope	± 300mm
Power of motor	0.75-2.2KW
Standard leveler Size	2500x2000x500mm
Lip size	400mm
Color	Blue,Grey,Black,Dark Grey,Other color customized.

Structure Diagram:
Product Details:
1.The overall assembly can bear 120% load of standard nominal load capacity. Under static pressure of 24 hours, the deformation is within 3mm. And after pressure released, the deformation will recover.
2.The high-strength "U"-shaped beam design ensures high load and long-term operation without deformation.

3.Platform ground is made from high-strength 8mm or above thick steel plate. Surface is processed with groove milling to make it anti-skid.Surface treatment: Coated with epoxy resin paint, very durable and high anti-corrosive.
4.Hinge and shaft are super high temperature heat treated to reduce its deformation.
5.Whole set of hydraulic drive station is imported from Europe, with stable power output. It can work under high frequency because of very low work temperature of oil. High standard seal avoids oil leaking.
6. Anti-rolling skirts are provided on both sides to prevent accidental injury from reaching the platform. There is a support rod that ensures that maintenance personnel enter the docking bridge for maintenance.
You will receive:
Products real shot:

---
