Metallographic Sample Preparation Hot Mosaic Machine with Water Cooling

Product Description

Product Description Metallographic Sample Preparation Hot Mosaic Machine with Water Cooling

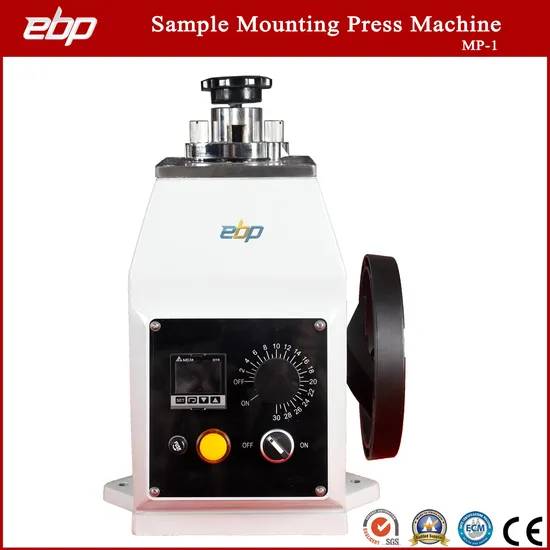

MP-1 metallographic sample mounting press is designed for mounting small or irregular shape and those difficult to hold samples, which is former procedure of grinding and polishing. The inlaying operation serves to facilitate the grinding and polishing operations of the specimens and the routine observation of the composition of the material under the metallographic microscope.
Working environment:
The relative humidity of air should be no more than 85% (20 °C).
The voltage fluctuation should be no more than 15%.
There should be no obvious vibration source around.
There should be no current conducting dust, explosiveand corrosive air.
Main Parameters:

Mold Diameters	φ30mm (φ22mm/φ40mm/φ45mm optional)
Heater power	φ22mm / φ30mm: 450W φ40mm / φ45mm: 650W
Mounting Temperature	0-200ºC can be adjustment
Display	Setting value & Real value
Mounting time range	0-30min
Cooling type	Natural cooling in air
Load pressure type	By manual load
Power	AC220V 50HZ
Machine size	310*300*400mm
Machine Net weight	34kg
Package size	400*400*560mm
Gross weight	40kg
