High Accuracy CNC Lathe Machine Br570 CNC Slant Bed Lathe

Product Description

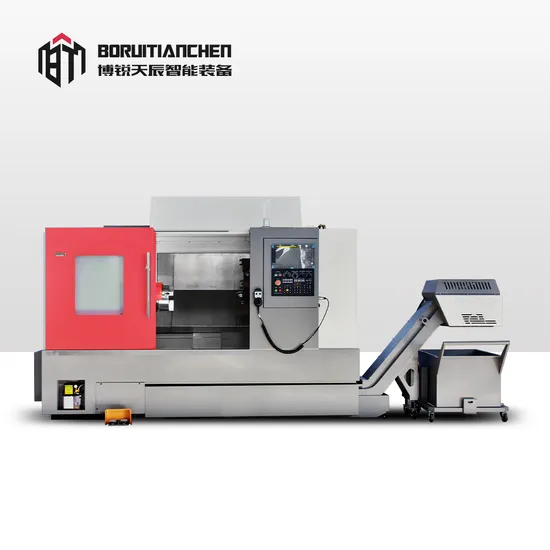

High Precision CNC Slant Bed Lathe BR570 Detailed Photos
Product Parameters

Items	BR570
Maximum Turning Diameter Of Bed	Φ560
Maximum Processing Diameter	Φ470
Maximum Processing Diameter On Tool Holder	Φ330
Maximum Processing Length	480/750/960/1500 mm
Spindle	A2-6 (8″) / A2-8 (10″)
Motor Power	11-15kW
Spindle Maximum Speed	4200/3500rpm
Spindle Hole Diameter	Φ66/86
Bar Diameter	Φ52/72
X/Z/Axis Screw Specifications	3210/4010
X-Axis Limit Travel	260
Z Axis Limit Travel	610/830/1050/1570mm
Recommended X/Z axis Motor Torque	11N.M/11N.M
X/Z Axis Rail Specifications	45/45
Tool Turret (Special Configuration)	12 station servo turret
Recommendation center height	100
Sleeve Diameter	80
Sleeve Stroke	80(optional 150)
Maximum Travel Of Tailstock	500/750/1000/1050
Tailstock Sleeve Taper	MT5
Casting Bed Form and Slope	Integrated/30°
Overall Dimensions (L*W*H)	3000*1870*1950mm
Machine Weight	4200kg

After Sales Service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
