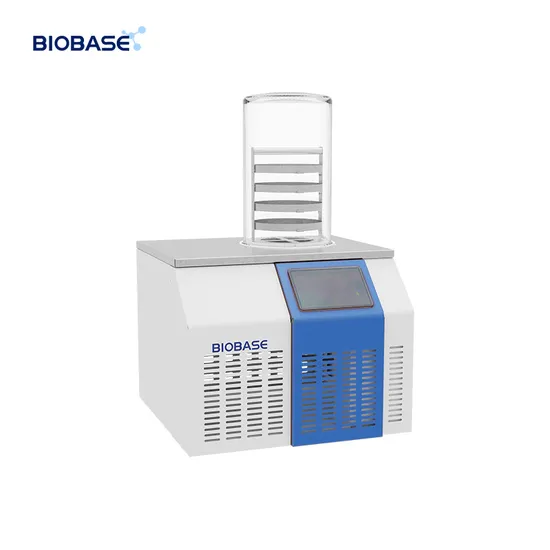

Biobase Freeze Dryer Large Cold Trap Opening Size Freeze Dryer for Lab

US$899.00-1,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
BK-FD10S
Type
Freeze Drying Equipment
Application
Slurry
Fuel
Electric
Operating Pressure
Vacuum
Roller Number
Single Drum
Cloth Membrane Forms
Splash
Fluid Bed Drying Equipment Type
Horizontal Fluid Bed
Vacuum Drying Equipment Type
Continuous Vacuum
Condition
New
Product Name
Freeze Dryer
Model
Bk-Fd10s
Type1
Standard Chamber
Freeze Drying Area
0.12m²
Tray
4PCS
Height Between Trays
50mm
Cold Trap Temperature
≤-60ºC(No Load)(-80ºC Optional)
Cold Trap Capacity
6L
Cold Trap Size(Diameter*H)
219*140mm
Vacuum Degree
≤5PA
Water Capture Capacity
3~4L/24h
Tray Size(D*H)
200*20mm
Freeze Drying Time
36h
Loading Capacity/Shelf(Liquid)
1.2L
Total Loading Capacity(Liquid)
2.4L
Transport Package
Wooden
Specification
735*720*760mm
Trademark
BIOBASE
Origin
China
Production Capacity
1000

Product Description

Product Description
Introductions:
Vacuum freeze-drying technology is also known as sublimation drying. The principle is to freeze a sample containing water in advance, and then sublimate its moisture under vacuum. The original biological, chemical and physical properties of the freeze-dried samples remain basically the same, and they are easy to be stored for a long time. After adding water, the samples can be restored to the state before freeze-drying, and their original biochemical characteristics can be maintained. Therefore, freeze-drying technology is widely used in food, chemical, biological products and other fields.
Features
1. Compressor, energy saving and high efficiency, low noise, long life.
2. Vacuum pump, small volume, pumping speed, low noise, can achieve higher vacuum.
3. Integrated design, compact structure, easy to use.
4. Environmentally friendly refrigerant, ODP=0.
5. With defrosting function, safe and reliable
Product Parameters
Model
BK-FD10S
BK-FD10P
BK-FD10T
BK-FD10PT
Type
Standard chamber
Standard chamber with 8 port manifold
Stoppering chamber
Stoppering chamber with 8 port manifold
Freeze Drying Area
0.12m²
0.08m²
Tray
4pcs
3pcs
Height Between Trays
50mm
/
Cold Trap Temperature
≤-60ºC(No load)(-80ºC optional)
Cold Trap Capacity
6L
Cold Trap Size(Diameter*H)
Φ219*140mm
Vacuum Degree
≤5Pa
Water Capture Capacity
3~4L/24h
Tray Size(D*H)
φ200*20mm
φ180*20mm
Freeze Drying Time
36h
Loading Capacity/Shelf(Liquid)
1.2L
0.8L
Total Loading Capacity(Liquid) 2.4L 1.6L
Drying Chamber Size(Diameter*H) Φ260*420mm
φ260*465mm
Total Qty. of Vial φ22
/
/
147
147
Total Qty. of Vial φ16
/
/
297
297
Total Qty. of Vial φ12
/
/
492
492
Refrigerant
-60ºC: R600a, R23
-80ºC: R404a, R23
Cooling System
Standard: Air cooling
Power Supply
Standard: 220V, 50Hz
Optional: 220V, 60Hz
Power Consumption
1300W
Standard Accessory
Vacuum pump 2L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models)
Conical-mouth flask 100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs, Switch valve*8pcs(only for model BK-FD10P/PT), USB port
Optional Function&Accessory
Equipment moving frame, vacuum pump of other specifications, vacuum regulation, oil mist filter, automatic air intake, automatic water discharge and other customization(for all models)
600ml/1200ml Wide-mouth flask(for BK-FD10P/PT)
External Size(W*D*H)mm
640*610*550
Package Size(W*D*H)mm
Main body
735*720*760
Accessory
720*605*560
Gross Weight(kg)
Main body
-60ºC: 80
-80ºC: 98
Accessory
45
49
54
56
Company Profile
Founded in 1999, having over 2000 employees (till August, 2017), BIOBASE Group is a new high-tech enterprise focusing on development, production and management of scientific equipment, In Vitro Diagnosis (IVD) instrument and reagent.
BIOBASE Group is specialized in products of 8 areas including medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.Every year, we BIOBASE attend many international famous exhibition. On the exhibition, we will show some best selling products. If you are interested, you are invited to visit us. We would like to inform you in advance.
Packaging & Shipping
After Sales Service
