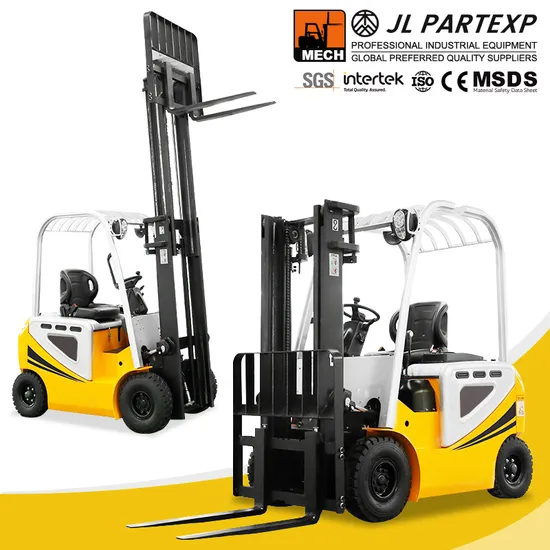

Mini Lithium/Lead Acid Battery Electric Full Hydraulic Carretilla/Montacargas/Elevadora/Forklift Truck with CE ISO Certification Factory Direct Sales

Product Description

Door frame
High-quality manganese steel profiles, welded with one-piece steel plate, H-shaped steel door frame, strong toughness and high safety factor.Body
The whole vehicle is welded with high-quality steel, the structure is stable, the whole vehicle is painted with electrophoresis, and has strong corrosion resistance.Roof Guard
Heterosexual interface, adopts one-time molding roof guard, beautiful in appearance, durable, arched design, strong compression resistance, high safety factor.Fork
One-piece forging process, high strength, safe and stable structure, and it is more convenient to adjust the truck.Axle
Dedicated for light and small tonnage forklifts, using high-end brand and supporting system axles, integrated design of axle box.Tires
Natural rubber tires, wear-resistant and quiet, solid tires can work continuously for 24 hours, saving maintenance time and cost, low temperature requirements, strong bearing capacity.
Side panels:
Stamped by multi-part molds, beautiful in shape, high-end in quality, clear in lines, agile, and powerful in visual tension.
Steering wheel:
Hydraulically assisted multifunctional steering wheel is adopted, which is convenient to operate and precise in steering, and the excellent human-computer interaction brings a comfortable driving experience.
Center console:
Adopts integrated injection molding instrument panel, humanized design, special injection molding instrument panel for high-end brand models, LCD display, display speed and current, etc., equipped with fault diagnosis system, intelligent fault display, real-time feedback, easy to troubleshoot system faults,Customizable language types.
Electric control:
High-end brand electric control, vector control, low energy consumption, low failure rate. The matching parameters can be adjusted according to different motors, which is convenient for adjustment and maintenance.
Motor:
AC permanent magnet synchronous motor, brushless technology, low maintenance cost without carbon brushes.
Battery:
Adopt first-line brand genuine motor, the power is not empty, genuine and long service life.
Oil valve:
Manipulate and change the flow direction of hydraulic oil to control tilting, lifting, clamping, pushing and pulling, and steering cylinders to meet operating requirements, and limit the pressure of the hydraulic system to prevent overloading of forklifts.
LED headlights:
Individually designed LED headlights, independently developed and designed, beautiful and practical, 25% brighter than normal lamps.
Hydraulic steering:
All series of hydraulic steering, sensitive steering, convenient operation; less electronic systems of hydraulic steering, mature and stable technology, high reliability.
Storage box:
Humanized design storage box, including water cup holder, storage box and USB charging interface, providing more convenience for work.
Seats:
The same type of seats of high-end brands, reducing driving fatigue, safe and durable.
Braking:
It has auxiliary function of cargo transportation, anti-slope function, automatic parking, safety guarantee, and auxiliary function of electromagnetic brake and anti-skid brake.
Product Parameter

Characteristics		Unit	Main details
Model			Model 10	Model 20	Model 35
Driving mode			Seated	Seated	Seated
Rated capacity	Q	Kg	1000	2000	3500
Load center distance	C	mm	500	500	500
Power mode			Lead-acid battery Optional lithium battery	Lead-acid battery Optional lithium battery	Lead-acid battery Optional lithium battery
Wheelbase	L1	mm	1330	1550	1850
Tyre
Tyre type			Solid Tire	Solid Tire	Pneumatic Tire
Wheels number(front/rear)			2/2	2/2	2/2
Front track	W3	mm	910	945	1002
Rear track	W2	mm	865	880	994
Tyre(front)			15X4 1/2-8	18x7-10	28x9-15/14PR
Tyre(rear)			5X4 1/2-8	15X4 1/2-8	18x7-8/14PR
Size
Front overhang	L2	mm	308	325	494
Tilt of the mast,front/rear	α/β	°	5/10	5/10	5/10
Height,mast retraction	H1	mm	2017	2030	2057
Free lift height	H3	mm	/	/	120
Overall maximum lift height	H	mm	3000	3000	3000
Height,mast extended	H2	mm	3957	4055	4200
Overhead guard height	H4	mm	1847	2110	2200
Lateral Fork Adjustment(Outside of Forks)Max/Min	H5	mm	970/200	1040/100	1100/244
Fork size(LxWxT)	T*W*L4	mm	30*100*1070	40*100*1070	45*130*1070
Truck body length(fork excluded)	L'	mm	1980	2230	2649
Truck body width	W1	mm	1020	1096	1250
Turning radius	R	mm	2050	2280	2350
Groubd clearance under mast	H5	mm	77	88	82
Ground clearance at center of wheelbase(laden)	H6	mm	100	110	145
Width of aisle right-angle stacking (pallet1000x1000mm clearance 200mm)	Ast	mm	3550	3850	4300
Width of aisle right-angle stacking (pallet1200x1200mm clearance 200mm)	Ast	mm	3700	3950	4500
Performance
Travel speed,laden/unladen		Km/h	12/14	12/14	12/14
Lifting speed,laden/unladen		S	10/12	10/12	10/12
Lowering speed,laden/unladen		mm/s	550	550	450
Maximum negoniable gradient,laden/unladen		%	15/20	15/20	12/20
Weight
Service mass(with battery)		Kg	1700	3100	4800
Battery voltage /nominal capacity		V/Ah	60V/120Ah	72V/210Ah	80V/300Ah(Choose lead acid)
Battery weight		Kg	240	396	Lithium battery 160 (lead acid 490)
Battery life		h	5-6h	7-8h	7-8h
Intelligent battery management system					IBMS Youdan
Electrical configuration
Drive motor power-60 minutes		KW	5	5	10
Lift motor power-15 minutes		KW	4.5	5	12
Drive motor controlling mode			MOSFET/PMSM	MOSFET/AC	MOSFET/AC
Lifting motor controlling mode			MOSFET/PMSM	MOSFET/AC	MOSFET/AC
Service brake/parking brake				Hydraulic/Mechanial	Hydraulic/Mechanial
For more parameter customization, please consult customer service!>>>

Energy Saving EconomyThe cost of using a car is lower, the sound is light, zero in-line, and the battery life is strong
AC battery forklift
Sustainable energy recovery technology
low maintenance cost
soft sound
zero emission
Fuel forklift
High fuel consumption
high maintenance cost
loud noise
waste emission pollution Passed ISO international system
EU CE certification
The quality is guaranteed, and the export is unimpeded
Professional Factory
Our company integrates manufacturing, research and development, sales, after-sales and service, introduces high-end technology, and launches the Model series of high-performance electric forklifts, off-road forklifts, handling machinery, small miniature electric excavators and tire excavators.
The main business covers the four core sectors of material handling, intelligent warehousing and logistics, intelligent electric excavators, and intelligent manufacturing systems. Among them, the collaborative integration of material handling and logistics system integration business, Gaoka's equipment manufacturing capacity ranks among the industry leaders, and the product line is rich and complete. It is a professional heavy industry machinery company integrating R&D, production, sales and after-sales service.
The company takes heavy industry as its main body, builds its brand with its strength, seeks development with integrity, adopts advanced European production technology, establishes a perfect quality assurance system, takes excavators and handling machinery as its leading products, and independently develops and produces high-configuration and cost-effective products suitable for national conditions. High-quality construction machinery hydraulic and electric intelligent products.
Our company's advanced management innovation technology,excellent product quality and perfect high-quality service help customers obtain rich value and achievehigh-quality customer experience.
Welcome to offline communication!
We have an offline office in Dubai,
you can receive visits at any time!
Consult us now!>>>
