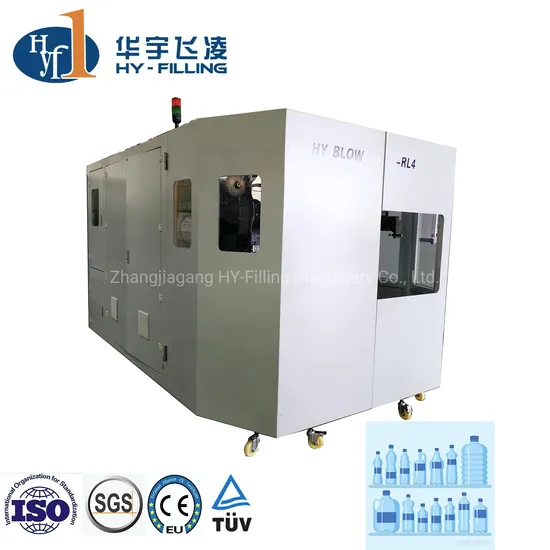

Customized Linear Type 4-8 Cavities Cold/Hot Filling Pet Bottle Mould Making Blow Moulding Machine

Product Description

Product Description
The linear blow molder for the production of PET bottle are highly versatile system, both in terms of output as well as for the various types of PET bottle to be produced. It is a linear machine, using the bi-orientation blow molding principle, ranging from 6 to 12 cavities, displaying various characteristics and performances while maintaining consistent quality: an efficient answer to numerous production needs. All electric driven and continuous motion are particular features, which ensure our machine with high productivity, low energy consumption, and wide versatility and flexibility. By making simple modifications to the same machine it is possible to produce a large variety of bottles, including: standard bottles, fully-customized bottled for cosmetics, detergents and chemical products, bottles with nature handles formed on the body of the bottle, small bottles for pharmaceutical products, extremely light bottles with lightweight necks.
PET machines produce the widest range of packaging products available on the market.
We offer PET & PP bottling turnkey proposal
Our services range from pre-sale consultation to a complete plant setup including machinery and peripheral equipment planning. From perform design to blow molding, we offer complete service.
Applications:
Food, oil, carbonated drink, mineral water, juice, alcohol and cosmetics bottles, tennis ball jar and high-temperature-resistant bottles.
Main Features
1). Stable performance with advanced PLC.
2). Conveying pre-forms automatically with conveyor.
3). Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared pre-heater.
4). High adjustability to enable the pre-heater to preheat pre-forms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the pre-heater with an automatic thermostatic apparatus.
5). High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
6). No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
Advantages
(1) High safety. high speed with high efficiency.
(2) Manual saving, one man is enough for operation the machine.
Stable performing with easy maintaining.
(3) Imported PLC controlling and man-machine interface computer
(4) Japan Omron inspection sensor
(5) Adopt the new type double bend arm and the four rod-clamping structure (won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
(6) Power saving design that can increase your profits
Segregate type air controlling system, which is designed for avoiding waste pollution
Heating oven advantage
Balanced heating mandrel technology
Cam controls preform dabber loading
NIR heating, intensive heating, PET preform much more uniform heated and optimized.
We provide the Complete turnkey project for beverage production line includes: Water Treatment System (Water Filtration) Preparation/Processing System (Mixing System for Drinks like CSD, juice etc) Injection molding machines (for pet preform) Bottle Blowing Machine (Making plastic bottles) Air Conveyor (Transport empty bottles) Filling Machine (Filling product into bottles) Cap elevator (Transport cap) Blow dryer (Blow away water drops) Flat Convey (Transport bottle) Code Printer (Printing the date on the filled bottle) Labeling Machine (Labeling for filled bottle) Bottle Packing Machine (package the filled bottles) Palletizing Machine (to palletize the cartons)
Auxiliary Machines

	1.Water treatment Water treatment is equipped for pure water, mineral water, and water used in beverage drink. It contains RO, natrium filter, ultra filter, activated carbon filter, ion exchanger, ozone processor etc.
2.Bottle Blowing Machine Divided into: semi-automatic bottle blowing and full automatic bottle blowing machine. Suitable for: PET bottle. Bottle size: 500ml-2L
	Filling Machine The machine is combined with rinsing, filling and capping, which special designed for PET bottled. It is stable characteristic, advanced technology, nice appearance and complete function.
4.Filled Bottle Conveyor System Conveying belt is designed by module, component can be interchanged easily, structure is compact, noise is little, easy assembling and maintaining, have flexibility to combine the bottle type according to the different capacity.
	5.Packaging System Customized: Sleeving Label Machine, Film Shrink-wrapping Machine, Palletizing machine, Date code printer etc.

---
