Small Mobile Centrifugal Vertical Basket Centrifuge

Product Description

Product Description

Small mobile centrifugal vertical basket centrifuge
1. Product introduction of solid-liquid separation filtration centrifuge:

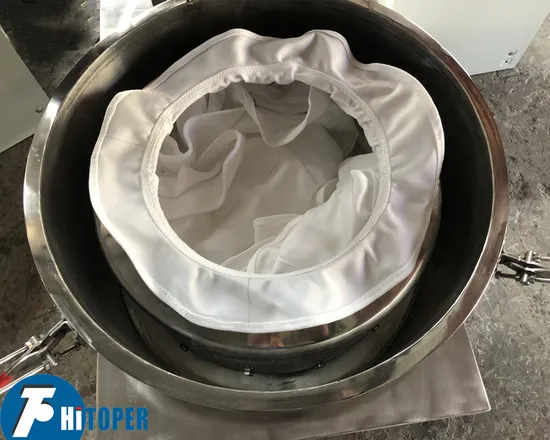

This PS450 model basket centrifuges of centrifuge machine manufacturer is upper discharge and intermittent operation type centrifuge. Material is feeded into the drum from the upper, with the centrifugal force, liquid is discharged out of he machine through the filter bag, and solids retained in the filter bag. After the drum stops, then to discharge the solids.
2. Function of basket centrifuges, centrifuge machine manufacturer
This PS450 model basket centrifuges is mainly used for data acquisition and analysis of various types of research machinery, universities, corporate laboratories, pilot phase. By focusing on the analysis and comparison of the various stages of adaptation and separation of materials data, convenience and mass production in the pilot phase of the production and application selection.
The machine looks, compact and flexible, can be placed directly on the table to operate, with material contact parts can be used for production of various materials or spray, in order to meet the needs of the experiment.
Its working principle is by accelerating the centrifugal force, so that the particle sedimentation rate significantly faster, and through the filter media, such as cloth and other separation work.
3. High Lights of basket centrifuges, centrifuge machine manufacturer
1. PS450 model basket centrifugest adopts plate and high viscosity damper shock absorber, no need of concete foundration, easy to operation.
2. The drum, housing and foundation all with Polish process, all fasten parts are stainless steel, and seal parts are silicone rubbers.
3. The whole machine is in the line with the GMP requirments.
4. This good price laboratory mini centrifuge with good seal, explosive-proof and cleaness.

4. Application scope of centrifuge
It is especially applicable to the filtering of toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc.
For example: Gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
5. Main Material of centrifuge
Triangle circle, column feet, chassis, shaft, drum bottom all adpot HT materials, drum wall, block liquid plate, shell and chassis, shaft, LAN line package adpots stainless steel.
6. Technical Parameter of centrifuge

Type	Drum				Separation factor	(kw) power	Opening limit	(kg) weight	(mm) dimensions
	(mm) diameter	(L) volume	(kg) limit	(r/min) speed
PS300	300	5	10	2500	1050	1.1	1000	180	890×600 ×500
PS450	450	20	25	1900	910	1.5	1160	250	980×650 ×870
PS600	600	40	50	1500	756	3	1700	800	1300×880 ×900
PS800	800	100	135	1200	645	5.5	2000	1300	1800×1200 ×1140
PS800-NA	800	100	135	1500	1008	7.5	2000	1300	1800×1200 ×1140
PS1000	1000	150	200	1000	560	7.5	2250	2000	2050×1500 ×1140
PS1000-NA	1000	150	200	1200	806	11	2250	2000	2050×1500 ×1140
PS1200	1200	250	300	800	431	11	2700	2500	2350×1650 ×1370
