Good Service Extrusion Computerized Plastic Bottle Making Blow Molding Machine

Product Description

Product Description

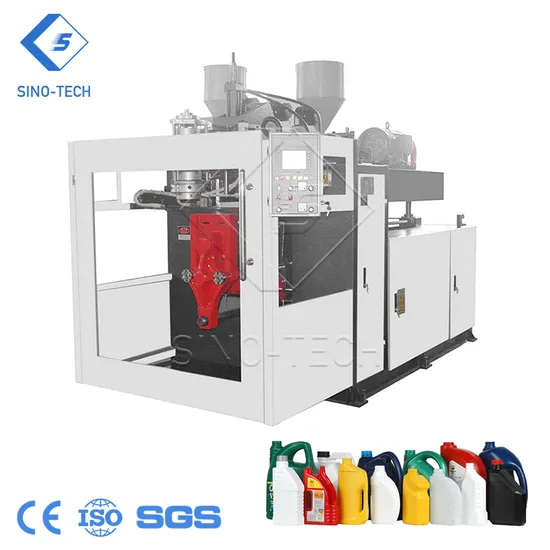

Good Service Extrusion Computerized plastic bottle making Blow Molding machine
STBII-2L series 0-2L high speed small bottles Pharmacy Pesticide shampoo bottles blow molding moulding Machine is Suitable for making 0~2L PP PE HDPE LDPE PVC,PETG... plastic hollow bottles.
Applications: milk/ yogurt bottles, food pack containers, plastic jars, chemical bottles, cosmetic bottles, lubricant oil bottles, household ...
Product Description
Machine Features PLC+touch screen: making the operation easy.*Automatic malfunction alarm: with self-diagnosis,making the malfunction clear at a glance.*Center input die head: eliminating the knit line completely and making it easy to change the material and color.*Double linear guide rail: Unique "liner guide" to the clamping structure to ensure mold-lock uniform, knit line smoother, stable and quite working.*Mould locking system: adopts Crank arm-Center lock design to provide the strong clamping force.*High speed and efficient plasticizing: mixing well and ensuring the produce purity.
Customize the products according to your requirement
Product Parameters

Technical Specification
Specifications		STB-2L	STBII-2L
Max. Product Volume	L	2	2
Station		Single	Double
Dry cycle	pc/h	900	900*2
Screw Diameter	mm	50	60
Screw L/D ratio	L/D	25	25
Screw drive power	KW	11	15
Screw heating power	KW	6	9.7
Number of Heating Zone (Screw)	Zone	3	3
Output of HDPE	kg/h	50	60
Hydraulic pump driving power	KW	5.5	5.5
Clamping force	KN	40	40
Platen distance	mm	138-368	138-368
Mold moving stroke	mm	370	370
Max. Size of Mold	(W*H) mm	300*320	300*320
Capacity of Accumulator head	L
Max. Die diameter(Single-head)	mm	108	108
Die heating power(Single-head)	KW	5.2	5.2
No.of heating zone(Single-head)	Zone	3	3
Central distance of Bi-head	mm	130	130
Max. Die diameter(Bi-head)	mm	72	72
No.of heating zone(Bi-head)	Zone	5	5
Heating power(Bi-head)	KW	7	7
Blowing pressure	Mpa	0.6	0.6
Air consumption	M3/MIN	0.4	0.4
Cooling water consumption	Mpa	0.2-0.3	0.2-0.3
Water consumption	L/MIN	35	35
Size of machine	(L*W*H)m	2.88*1.55*2.35	3.3*2.12*2.55
Weight of machine	Ton	4	6

Detailed Photos

Company Profile
Packaging & Shipping
Customer Feedback

FAQ
Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
