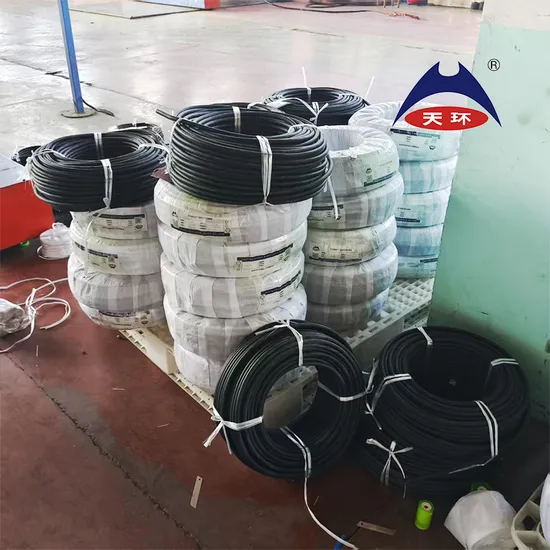

China CE Certified H07rn-F Flexible Multi Core Rubber Cable for Industrial

Product Description

Overview
Product DescriptionModel Number :H07RN-F
Brand Name : Tianhuan
Conductor material:Bare annealed copper stranded
Insulation:Cross-linked synthetic elastomer type EI 4
Outer sheath:Cross-linked synthetic elastomer type EM 2
Rated Voltage: Ac:450/750V
Color : Black
Core:1,2,3,4,5,6,etc.
Wire Size: 1mm²-500mm²
Rated Temperature: -40~ 90 ºC

specification	Insulation	Outer sheath	Conductor cross-section	Maximum outer diameter	Minimum outer diameter	Max. linear resistance, phase conductor	Permissible current rating in open air	Voltage drop, single phase	Minimum dynamic operating bending radius	Minimum static operating bending radius
1x10	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	10 mm²	11.9 mm	9.5 mm	1.91 Ohm/km	77 A	3.4 V/A.km	71.4 mm	35.7 mm
1x16	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	16 mm²	13.4 mm	10.8 mm	1.21 Ohm/km	102 A	2.2 V/A.km	80.4 mm	40.2 mm
1x25	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	25 mm²	15.8 mm	12.7 mm	0.78 Ohm/km	136 A	1.4 V/A.km	94.8 mm	47.4 mm
more detail welcome to contact us
2x1.5	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	1.5 mm²	11.0 mm	8.5 mm	13.3 Ohm/km	23 A	27.0 V/A.km	66.0 mm	33 mm
2x2.5	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	2.5 mm²	13.1 mm	10.2 mm	7.98 Ohm/km	32 A	16.2 V/A.km	-mm	-mm
2x4	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	4 mm²	15.1 mm	11.8 mm	4.95 Ohm/km	43 A	10.1 V/A.km	90.6 mm	45.3 mm
more detail welcome to contact us
3x1.5	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	1.5 mm²	11.9 mm	9.2 mm	13.3 Ohm/km	23 A	27.0 V/A.km	71.4 mm	35.7 mm
3x2.5	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	2.5 mm²	14.0 mm	10.9 mm	7.98 Ohm/km	32 A	16.2 V/A.km	84.0mm	42 mm
3x4	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	4 mm²	16.2 mm	12.7 mm	4.95 Ohm/km	43 A	10.1 V/A.km	97.2 mm	-mm
more detail welcome to contact us
4x1.5	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	1.5 mm²	13.1 mm	10.2 mm	13.3 Ohm/km	21 A	23.3 V/A.km	78.6 mm	39.3 mm
4x2.5	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	2.5 mm²	15.5 mm	12.5 mm	7.98 Ohm/km	29 A	14.0 V/A.km	93.0mm	46.5 mm
4x4	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	4 mm²	18.0 mm	14.0 mm	4.95 Ohm/km	38 A	8.71 V/A.km	108.0 mm	54 mm
more detail welcome to contact us
5x1.5	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	1.5 mm²	14.1 mm	11.2 mm	13.3 Ohm/km	21 A	23.6 V/A.km	86.4 mm	43.2 mm
5x2.5	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	2.5 mm²	17.0 mm	13.3 mm	7.98 Ohm/km	29 A	14.0 V/A.km	102.0mm	51 mm
5x6	Cross-linked synthetic elastomer type EI 4	Cross-linked synthetic elastomer type EM 2	6 mm²	22.2 mm	17.5 mm	3.3 Ohm/km	50 A	5.84 V/A.km	133.2 mm	66.6 mm
more detail welcome to contact us

Production flow
About usOur company, Tianhuan Cable Group Co., Ltd., has successfully approved LVD legislation and CPR legislation of CE certifications,as well as holding product certificates from TUV and CCC. Furthermore, we have also passed a series of management system certifications by ISO.

Tianhuan Cable Group Co., Ltd., founded in 2000, is a professional cable and wire manufacturer located in Ningjin County, Hebei Province, China. With a registered capital of 302,000,000 CNY (approx $431,142,000), floor area of 110,000 m2 and construction area of 86,000 m2, the company contributes to the construction of power networks in China and even other countries around the world with it's strong strength. Over the years, the company has cooperated with the State Grid, China Railway and other government units, and has won the top 100 enterprises in China's cable industry. Tianhuan Cable Group adheres to reform and innovation, and its cable products not only sell well in 28 provinces and municipalities across the country, but also have a good market across the world. The factory and products have been well received by customers at home and abroad.HOT SALE

Packaging & Shipping
Customer cooperation
FAQ A)Are you trading company or manufacturer?we are manufacturer. if you did not find your needed in this page. Just contact us and welcome to visit us.
B)How about the delivery time? Usualy it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock,it depends on your quantity.
C)What's the package of products?The package is usually wooden drums ,steel-wooden drums or according to requirement .
D)What is your MOQ for the cable and wire ?Please contact us for more details, MOQ depends on the sort of cable.
E)Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. so contact us.

---
