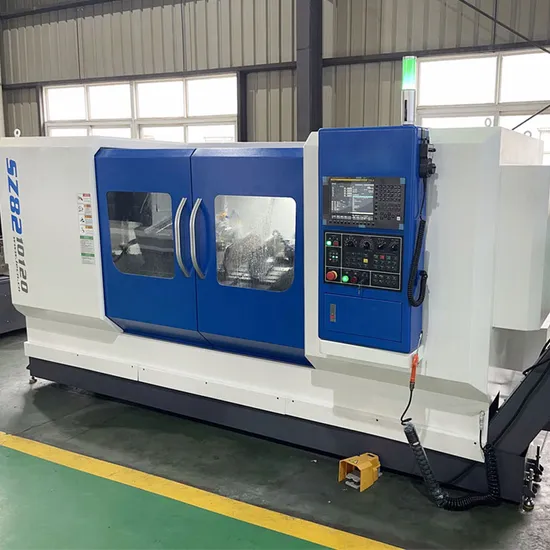

CNC Lathe Horizontal Shaft Turning/Facing Centering Machine for Milling Face/ Drilling Hole Half Shaft

Product Description

Δ The machine can accommodate D21, 27, 32, 38, 45, 67, 78 diameters and the fixture can be used for 7 types of parts.
Δ Clamping one time can milling face, drilling hole, roping, chamfer etc;
Δ Horizontal integral casting body , stronger rigidity than vertical ;
Δ High rigidity rectangular hardened rails,durable;
Δ Hydraulic self-centering jig, clamping reliable,accuracy stability;
Δ Special high rigidity spindle,long life;
Δ Can carry with truss or joint robot and automatical line;
Δ More suitable for truss robot support automated on-line;

ITEM	SZ8210120	SZ8210150	SZ821080	SZ821060
Clamping diameter scope	φ20 -100mm	Φ15 -100mm	Φ15 -100mm	Φ15 -100mm
Workpiece length scope	400 - 1200mm	300-1500mm	200-800mm	200-600mm
Max center drilling clamping diameter	Φ26	Φ26	Φ26	Φ26
Max milling amount (one side)	5mm	5	5	5
weight	6500kg	8500kg	5000kg	5000kg
Length x width	4500 × 2000mm	4000 x 2000mm	3200 x 1600 kg	3200 x 1600mm

Hydraulic self-centering fixture , CNC spreading tool, CNC tapping , Automation,
WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.

Q: What are your normal lead times?
A: Normally, 30 to 60 days
Q: What kind of package do you offer?
A: Standard wooden case packing
Q: Do you have certification of your machine?
A: CE certificate
Q: How about the warranty service?
A: 24 months
Q: How about the installation and commissioning?
A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
Q: How to select the suitable machine?
A: Pls tell us the machine you need, Includes drawings, specifications and other requirements.
Q: How to do it if we meet the issue during the operation?
A: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q: If we want to learn how to operate the machine, Can you provide it?
A: Yes, we have special service team which will offer you professional guidance.

---
