Lf-110 Paper Cup Machine Disposable Paper Cup Forming Machine Price

Product Description

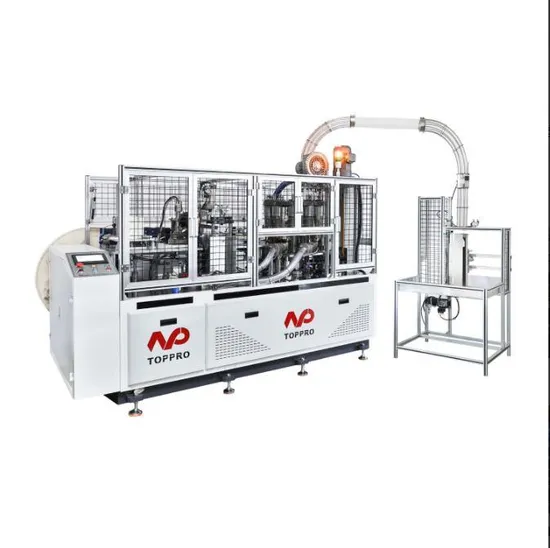

LIFENG NEW TYPE PAPER CUP MAKING MACHINE! Product Description LF-110 MIDDLE-SPEED PAPER CUP MACHINE FORMING MACHINE
LF-110 MID-speed paper cup forming machine is a multi station high-speed automatic
machine producing both single and double PE coated drink cups through
continuous process of automatic paper feeding,sealing,oil injection,bottom
cutting,heating,knurling,curling and stacking.The machine adopting hot air system,PLC
control,servo motor driving,full-automatic failure warning,counting,detection,stopping,etc. This machine speed can reach100-110pcs/min
Product Parameters

Model	LF-110
Paper bowl Size	Bottom:48-70mm Top: 70-95mm Height: 60-135mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	100-110pcs/min
Suitable paper weight	170-350gsm
Voltage supply	380v50hz 3-phase *If user's voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.6-0.8mpa 0.4m3/min User should buy Air Compressor
General power	16kw
Net weight	1800kgs
Measurement (mm)	2500*1100*1500
Cup Side Sealing	Ultrasonic

Detailed Photos 1. The core components adopt open cam design, with gear motor
2. Machine has full automatic lubrication by oil pump and filtration, more convenient for maintenance.
3. Use hot air heater system to make bottom more perfect and ensure the accurancy.
4. Control panel use touch screen, a clearer vision, the whole electrical appliances adopt imported configuration, have high generality and good performance, and facilitate equipment maintenance.
5. Use new rotary type paper fan feeding system, instead of traditional linear bearing, to ensure machine performance more stable and faster machine speed.
Packaging & Shipping our paper cup machine all package with strong woodencase,and also will send you a tool box,english manual and electric diagram with machine,also will send you a CD to teach you how to operate machine.

Company Profile Wenzhou TOPPRO Machinery Co..Itd. is a professional manufacturer of paper container machine, who was established in 1999,located in Ruian City,Zhejiang Province, China. Our pros paper cup machine, paper bowl machine, paper cone machine, die punching machine and so on. The company occupy an area of 9033.74 square meters. The company has obtained CE & SGS certificates. In past 10 years, we have successful foreign trading experience in Europe, South America, Africa and Southeast Asia/ Mideast. We pursue "quality first, service paramountcy", welcome the clients at home and abroad to cooperate. Certifications
FAQ
Q1: if the machine break down overseas, what is the effecient to solve the problem?
A1: Basially , the machine is easy to operate, the engineer can teach the client how to fix the machine by video or email. And the engineer are available to overseas.
Q2: The payment, MOQ, producing period and delivery time? A2: T/T 30 % as the deposit, and the balance payment should be paid before delivery.
MOQ is 1 set.
The producing time is 25 days after deposit.
The delivery time is within 5 days after balance payment.
Q3: How to get my company?
A3: The address: 7# building , Yongding Road, Songjiadai Industril Zone, Feiyun Town , Ruian city.
If you want to visit my company, please send your ticket information to my skype or email. I will meet your in the Wenzhou Longwan Airport.
Contact information:
If you are interested in our paepr cup machine,
Do not hesitate to contact us
Contact person: James Ye
Waiting for your coming~

---
