Product Description
Product Description

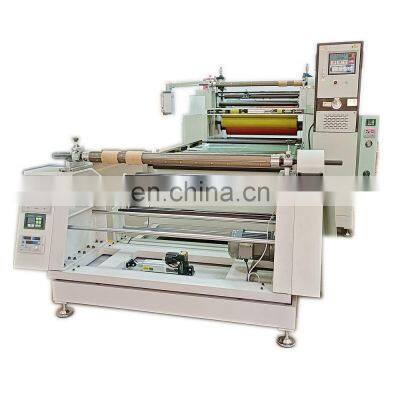

Product DescriptionSpecification1, technical parametersMachine speed: 5-30m/min (adjustable)Maximum width of raw materials: 1200mmFIRST UNWINDING diameter: 500mmSECOND UNWINDING diameter: 500mmCopper strip diameter: 400mmRewinding diameter: 600mmVoltage: 380V 50HZTotal power: 10kwRaw material roll paper core diameter : 3 inch Compressed air source: (0.4-0.6) Mpa (customer-owned) 2, UNWINDING device Up and down UNWINDING air expansion shaft (3′′ tile type air expansion shaft) : 2 setsCopper strip UNWINDING shaft plus magnetic powder brake : 2 setsCopper strip automatic RECTIFICATION correction system:2 setsMagnetic powder brake 50N (Shengda) : 4 setsUNWINDING constant tension control system : 4 setsServo RECTIFICATION SYSTEM (Shenzhen Yupeng Technology) Ultrasonic Sensor : 3 setsBall screw (Taiwan HIWIN ) : 2 pieces 3, unwinding material laminating departmentWarming iron roller Ø400 (chrome plated mirror surface) 50-60H : 1 pieceLower heating laminating roller Ø400 (imported silica gel) : 2 pieces Main motor: 2.2KW (Taiwan Dongli) : 1 setMain motor inverter: Mitsubishi 1 setAluminum guide roller (surface hard oxygen treatment) 11 setsPulling up and down rubber pressure roller Ø200 (imported silica gel) : 2 piecesPressing roller pneumatic up and down system adjustable : 2 setsElectronic meter counter (Shanghai) : 1 setFilm unwind tension adjustment system : 1 set 4, the coil Rewinding departmentREWINDING air shaft (3′′ tile type air expansion shaft) : 1 setMain motor: 2.2KW (Taiwan Dongli): 1 setMain motor inverter: Mitsubishi : 1 setElectromagnetic clutch : 1 setServo RECTIFICATION Correction (Shenzhen YUpeng Technology) Ultrasonic Sensor 1 set 5, heating department DOWN PARY Glue roller (Ø300) : electromagnetic heating (0-100 degrees) 1SET UP PART IRON ROLLER (Ø300) : Electromagnetic heating (0-180 degrees) 1SET Infrared temperature controller : 2 sets 6, electronic control panel 1 set 7. Introduction to the main functions of this machine Frequency control, easier operation and more precise control. The rewinding magnetic powder tension is independently controlled and can be rewinding at the same time or used alone.The electronic meter has an automatic meter setting length and automatic shutdown.Packing & DeliveryWooden box.Company ProfileKunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine and other machinery. Our machines are mainly used for the production of industrial tapes, electronic shielding films, protective films of PVC/PET, copper aluminum foils, foams and other relate materials. Our company has excellent production equipment and strong technical force. We constantly improve our management system and after-sales services. Our company has won a good reputation among customers.Our company adopts foreign advanced technology. Through several times of manufacturing reform and innovation, we have developed consistently. We can customize difficult models. We not only provide users with products, but also provide services and professional technology for our customers.In the fierce market competition, we always adhere to the tenet of "quality first, users first" for the purpose to provide more perfect products and more superior services. We hope to cooperate with you to create a win-win situation.ItemDESCRIPTIONQTY (SET)Unit Price (USD)Total amount:DP-1200 RTHLaminating machine , max laminating width 1200mm ，unwinding diameter 800mm , second unwind diameter 350mm , rewinding diameter 800mm ,1inquiry 00861373266376 pleaseinquiry please
>>
