Efficient Semi Automatic Blowing Machine for 5 Gallon PP PE Pet Bottles

Product Description

Products Description

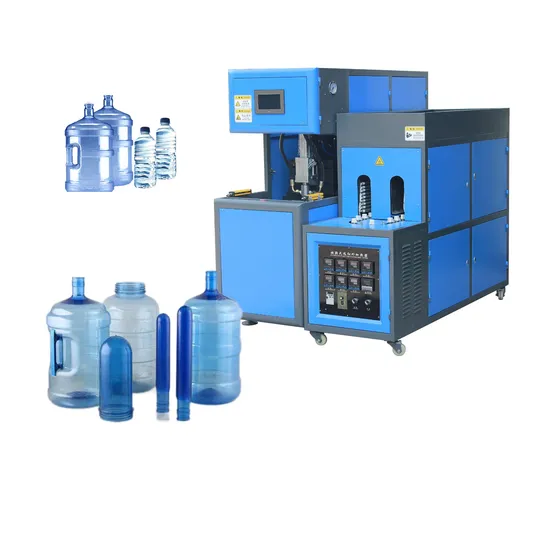

Semi-Automatic PET Bottle Making Machine
The semi-automatic PET bottle making machine offers an economical solution with its blend of affordability and efficiency. Featuring a manual operating system, it calls for manual intervention while boasting the capability to produce a remarkable 70-2000 bottles per hour, whether they are 5L, 10L, or 20L in size. This versatile machine emerges as the perfect choice for manufacturing bottles used in the chemical, fruit juice, mineral water, and edible oil sectors, serving both the beverage and chemical industries with excellence.
Distinctive Features Setting the stage for optimal performance, PET preforms find their place at a precisely calculated distance, while the heating tube is meticulously positioned at an exact height, ensuring exceptional efficiency.
Equipped with dual startup switches conveniently located on either side, the semi-automatic blowing machine prioritizes safety with its readily accessible emergency stop function. The temperature
control unit operates autonomously, adeptly managing the heating capacity and specific requirements tailored to each zone, ensuring precision.
With an intuitive LED display, operators can effortlessly monitor and fine-tune settings, simplifying the control and adjustment processes.
Designed to perfection, the heating lamp ensures that each preform receives a uniform heat distribution, guaranteeing consistent quality. Detailed Photos

Product Paramenters

model	unit	MW-2000	MW-3000	WM-10L	MW-2000-4	WM-5G
Clamping Force	T	16	20	25	16	30
Container Volume	L	2 cav.:0.1-2.0 1 cav.:2.0-3.0	2 cav.:0.1-3.0 1 cav.:3.0-6.0	2 cav.:0.1-5.0 1 cav.:5.0-10.0	4cav.:0.1-1.5	10-25 (3-5Gallon)
Neck Diameter Range	mm	10-60	10-120	10-120	18-38	65
Container Diameter	mm	120	220	320	120	330
Container Height	mm	380	450	450	380	550
Clamping Stoke	mm	230	330	330	330	330
Max.Stretching Stroke	mm	160	340	440	440	450
Number of Cavities	cavity	1-2	1-2	1-2	4	1-2
Theoretical Output	bph	800-1000	700-900	500-700	1500-2000	70-120
Voltage Standard	v/PH/Hz	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Tolal Power(Full Loaded)	kw	10-15	12-17	15-20	15-20	60
Blow Molding Machine	cm	200×65×180	220×75×180	230×65×180	220×85×180	200×80×210
Pre-heater	cm	185×70×145	195×70×145	205×70×145	205×70×145	280×70×160
Net Weight	T	0.8	1.0	1.2	1.4	1.5

Packing and Shipping

Secure Packaging:
Emphasizing protection, the machine is enveloped in stable wooden packaging to shield it from impacts and damage. A layer of plastic film guards against moisture and corrosion, while the fumigation-free package facilitates hassle-free customs processing. For larger machines, secure fixation within containers ensures stability without additional packaging.
Efficient Shipping: In terms of LCL, our partnership with a dependable logistics team guarantees the swift and safe transit of your machine to the port. On the FCL front, we expertly handle container procurement and loading with our experienced workforce. Our collaborations with professional forwarders ensure smooth processing of your shipments, and we aim for seamless coordination with forwarders for your convenience.
Company Profile
Maiwei stands at the forefront of blow molding technology innovation, leveraging years of dedicated research. With continuous enhancement of our product equipment, we offer solutions that deliver unparalleled stability, reduced energy consumption, and lasting durability. Our expansive product array includes bottles for dairy products, wine, oil, laundry detergents, engine oils, sprayers, hollow toys, and an array of other hollow plastic products. Beyond mere equipment sales, we are committed to resolving your packaging and blow molding challenges with tailor-made solutions. Our versatile machines can adapt to user-specific needs by adjusting the air source system, embodying flexibility, efficiency, and energy economy.
Our customers
Certifications
FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service? A:We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.

---
