EDM Wire Cutting Machine Wire Cut EDM Machine Molybdenum Wire Cut EDM Machine

Product Description

Product Description

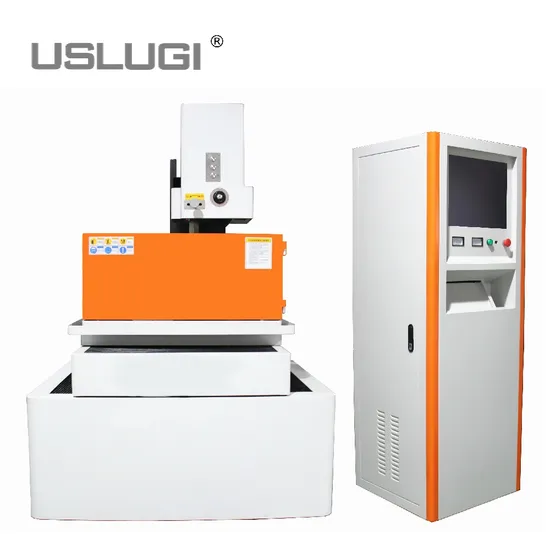

SF Series--High Precision Wire Cut EDM Machine With Servo Motor
Specification
1.Machine Features:
•Accuracy:0.003--0.004
•Roughness:1.0μmRa
•Processing speed:9,500 mm2/h
•Wear rate:0.01 mm/100.000 mm2
•Controt system:Autocut/Windows
•Fool-style operation
•Competitive price

2.Configuration:
•Machine body: resin sand casting.
•Solid T-type machine bed, C-type Z axis structural column.
•Latest HF discharge control
•Panasonic servo system
•C3 ground ball screw
•P level Linear guide
•Adopts upper-and-lower double wire tightening device.
•Waterproof Black stone wire-guiding wheel
•Patented black stone wire guider
•Equipped with high quality DRO

3.Parameters:

Items	Unit	DK7732SF	DK7740SF	DK7750SF	DK7763SF
Control system		Autocut/Win	Autocut/Win	Autocut/Win	Autocut/Win
Machining accuracy	mm	±0.004	±0.004	±0.004	±0.004
Roughness (3 pass)	μm	≤1.0	≤1.0	≤1.0	≤1.0
Worktable size	mm	520×760	600×850	750×1000	830×1170
Table travel(X*Y)	mm	320×400	400×500	500×630	630×800
Max Cutting thickness	mm	250	250	300	300
Max Tapper	°/mm	±3°/80	±3°/80	±3°/80	±3°180
Max cutting speed (1 pass)	mm2/h	9500	9500	9500	9500
Max cutting speed (3 pass)	mm2/h	4500	4500	4500	4500
Max current	A	7	7	7	7
Wire dia.	mm	φ0.10-φ025	φ0.10-φ0.25	φ0.10-φ0.25	φ0.10-φ0.25
Wire speed	m/s	4~12	4~12	4~12	4~12
Table load	Kg	300	500	800	1000
Working solution		DIC 206	DIC 206	DIC 206	DIC 206
Water tank capacity	L	180	180	180	180
Power supply		3N-380V/50Hz	3N-380V/50Hz	3N-380V/50Hz	3N-380V/50Hz
Power consumption	KVA	2	2	2	2
Wire frame		Z axis motorized	Z axis motorized	Z axis motorized	Z axis motorized
Controller weight	Kg	150	150	150	150
Controller dimensions	mm	900×600×1900	900×600×1900	900×600×1900	900×600×1900
Machine dimenslons	mm	1570×1100×1700	1600×1220×1700	1850×1400×1800	2070×1655×2060
Machine weight	Kg	2000	2300	3000	3600

Detailed Photos
Samples
FAQ
1.How can I choose the most suitable machines?
A: Please tell me your paramenters ,we can choose the best model for you , or you can choose the exact model.You can also send us the products drawing ,we will choose the most suitable machines for you.
2.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Milling Machine ,Vertical Machining Center ,Engraving and Carving Machine,Drilling and Tapping Machine ,Drilling EDM Machine,Die Sinking Machine,Wire Cutting EDM and so on.
3.What's your warranty?
A:Free one-year warranty and lifetime service for the entire machine.
4.When is the delivery time?
A:We can deliver stocked machines within 15 business days and afterreceiving full payment.
5.What is the packing of the machine?
A:The standard packaging of the machine is wooden pallet plastic film.

Our factory
Company Profile
Uslugi Tech Co.,Ltd.
is an enterprise that integrates production, manufacturing, and research and development.
By combining advanced manufacturing technology with the rich debugging experience of professional engineers and strictly adhering to standardized operating procedures, we ensure that every step is taken All machine tools are qualified to leave the factory, while ensuring that every qualified machine tool has the same stability and details uniformity.It adheres to the core values of "integrity, quality, focus, and innovation", creates greater value for customers, benefits society with the spirit of' craftsmanship", shares development with employees, partners, shareholders, and society, and achieves a win-win future.
