Automatic Manufacturer Touchless Car Washing Machine Smart Card Payment System with Timer Control for Washing Machine

Product Description

Dear Sir. Ms. :
Thank you for your interest in Shanghai KOLON products. We believe in KL 360-2 car washer products andThe service can meet your business needs, and we hope that our products and services can perfectlymatch you.
Overview

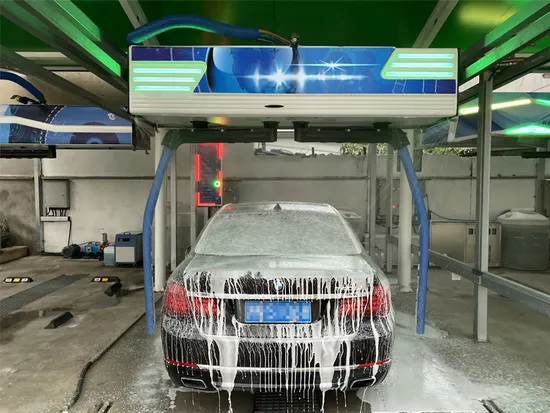

The latest KOLONWASH automatic car wash technology has improved the standard for non-contact carwash equipment. Focusing on increasing revenue and improving total cost of ownership, the car washsystem delivers the industry's best return on investment. Smart 360TM technology enables the car washsystem to respond to dynamics in the car wash and "think about itself", increasing uptime and optimizing the car wash process.
Significantly increased cleaning speeds increase vehicle throughput, shorten production lines and satisfy
your customers. Simplified machine design and lower energy and utility usage reduce operating costs,making the car wash business more profitable.
Main feature
1.Intelligent unmanned system, self-service card payment system.
2. Smart KL 360-2 technology.3.Intelligent chemical mixing system.
3.Innovative suspension system with no resistance rails.
4.Unique embedded quick drying system.
5.Digital voice security alarm system.
6.The self-test system is faulty.
1. High pressure pre-washing of the chassis and wheels.Equipped with a unique chassis and fan hub flushing function, 80bar high pressure water can effectivelyremove dirt from the chassis, the side of the body and the wheels.
2. Intelligent 360-degree rotating arm, using high-precision batching technology to spray various washingchemicals.100% accurate measurement with adjustable ratio. Car washing with a high-precisionchemical mixing system requires only 20 to 50 ml of pre-soaking, saving material and cost.
3.Intelligent 360-degree swivel arm, flush the body 360° with high-pressure water.
360° rotation in 28 seconds, water saving 50%, power saving 60%, automatic detection of the lengthand width of the vehicle, high pressure water up to 80bar can easily remove dirt.
4. Soft water and crystalline wax coating
The soft water can make the shampoo and wax in the magic crystal paint completely adhere to the surfaceof the car body, forming a multi-layered interaction strength protective film, making the car paint moreradiant and with long-lasting paint protection.The crystal coating of the wax can be formed in the surface
layer polymer of the coating, and the soft water agent is melted into a hard protective film, which hasexcellent protection against automobile paint, and has the functions of preventing acid rain, preventingpollution and preventing ultraviolet corrosion.
5. Unique embedded quick drying system.
KOLONWASH KL 360-2 is equipped with 4 3kw motors in the car washer.The air flow is controlled by fourcylindrical outlets. The first task is to blow off a bunch of winds, reduce the wind resistance of the subsequent
wind, and make the car surface dry. KOLONWASH 360 optimizes wind speed characteristics. Other traditionaltypes of fans increase wind speed, but when the car body is reached, the wind has been minimized. In fact,high-speed airflow is the best drying solution.

6.Using the German PINFL brand high-pressure piston pump and the ShangHai KOLON brand 11-15KW motor, the flushing pressure can reach 50Bar-100Bar.
7.Integrated intelligent liquid automatic proportioning system
The system is equivalent to a powerful chemical laboratory, equipped with a variety of liquid packages,accurate metering, spraying a car with only 20-50ml car wash liquid, precise control of each cost. Computer
program control, no manual operation, fully automatic adjustment of the scale. Through the steps of mixing,atomization and the like, the micro-granules are formed, and the surface of the vehicle body is covered byspraying, and the stains are more thoroughly contacted, and the gap of the body body can be uniformlypenetrated.
Applicable modelsIt ensures a complete, optimal cleaning range for multiple vehicle types, including dual tires.
Speed = Increased RevenueSimplified engineering and high-quality materials provide the optimal balance between initial investmentand long-term profitability. Substantially faster wash speeds increase vehicle throughput, resulting inshorter wash lines that will please your customers and keep them coming back.
E-Chain
Driver or passenger side-mounted factory preloaded energy chain for easy and low-cost installation.
Humanized design
*LED with voice prompt
*Automatic cleaning of the rearview mirror
*Error log and data report
*Automatic standby service
*Multi-control mode (via touch screen, magnetic card, payment station button, remote control operationwashing system)

technical parameter

Machine size	3300mm* 940mm* 920mm
Pump size	1250mm"800mm670mm
Chemical mixing system size	800mm* 500mm* 700mm
Track length	7500 mm
Shipment weight'volume	2.6 tons, 11 CBM
Installation size (celling installation length)	8000 mm-7500mm
Installation size (floor installation length)	≥7000 mm
MountingDimensions(ceilingmountingwidth)	≥3800mm
MountingDimensions(floormountingwidth)	≥3800mm
MountingDimensions(height)	≥3000mm
PowerRequirements	380V 35Kw,50Hz/60Hz
Air	80A
Totalpower	35kw
Waterpumpmotorpower	18.5Kw
Fanmotorpower	12Kwfullpressure5500Pa/airvolume11500cubicmeters.h
L ongitudinalmotorpower	0.37Kwstepessfrequencycontrol
Transversal motorpower	0.75Kwdigital drive motor
Rotarymotorpower	0.75Kwdigital drive molor
Liquidpropotioningsystemmotorpower	0.75kw
Centralprocessor	IndustrialPLCembeddedcentraliprocessor+dual-coresystem
DriveSystem	Promise frequency digital drive
Detectionsystem	Smathree-dimensional monitoring system
SensingSystem	Ultrasound+ Absolutevalueofthedig talencoder
Speed	360 RY WASH2seconds ,energysaving60%
WASHliquidconsumption	Dependsonllquldproportioning
Polish shampoo consumption	10ml- 40ml
Crystalwaxcoatingconsumption	11 Lcouldapplyfor800c ars
Waterconsumption	StandardWASH94L/car, FineWASH120L /car
Electricityconsumption	StandardWASHO. 52 kW.h/car, FineWASHO.99 KW- h/car

---
