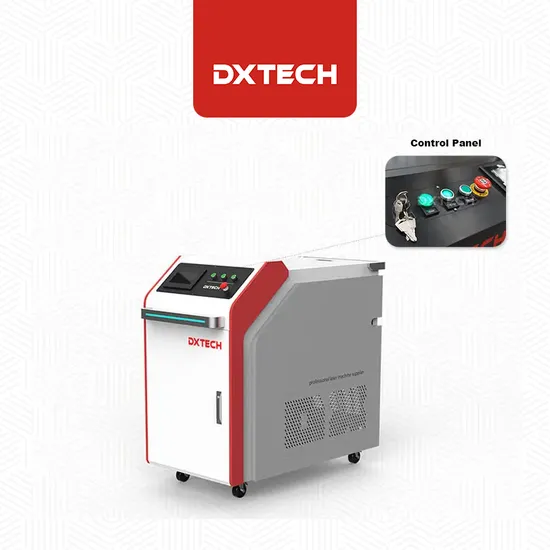

Dxtech Handheld "4 in 1" Fiber Laser Welding Machine for Welding Cleaning Cutting

US$4,000.00-7,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CCW-Series
Technical Class
Continuous Wave Laser
Control
Manual
Power Density
Heat Conduct Welding
Laser Classification
Optical Fiber Laser
Type
Portable Welding Machine
Cooling System
Water Cooling
Product Name
Handheld Laser Welding Machine
Laser Source
Raycus Laser Source
Laser Wavelength
1070 Nm
Color
White
Laser Power
1000W/1500W
Working Mode
Continuous
Welder Speed
0-120mm/S
Working Voltage
220V/380V
Service System
Online Support
Industrial Laser Brand
Raycus
Weight
250kg
Use
Laser Welding Work
Welding Head
Handheld Welding Head
Welding Materials
Carbon Steel
Transport Package
Wooden Box
Trademark
Dxtech
Origin
Shandong
HS Code
8461500090
Production Capacity
300 Per Month

Packaging & Delivery

Package Size
700.00cm * 360.00cm * 550.00cm
Package Gross Weight
240.000kg

Product Description


Features
1. Multifunction fiber laser machine, can weld, clean and cut metallic materials;
2. Handheld type with longer holder cable length;
3. Welding function conversion cleaning function, just replace the focusing lens and laser head;
4. Small machine body, can move easily. It is very convenient.
Technical Parameters

Machine power 1000w / 1500w / 2000w / 3000w
laser type continuous
Laser source Fiber laser
Cleaning width 10-200mm
Laser wavelength 1080±5nm
Pulse Width 0.05-0.6
Out power Stability <2%
Weld thickness 2-2.5mm/2-2.5mm/3-4mm/5-6mm
Power Consumption 7KW / 8.2KW / 9.8KW / 13.9KW
Fiber optical length 10m
Model Regular / mini
Machine size 700*1500*1300mm / 1500*750*850mm
machine weight 240KGS / 160KGS

Detailed Photos






Laser head --
The portable welding joint is light,flexible and easy to operate.
it can be used for continuous welding of various angles and positions.
Control Panel -- The operation is simple and clear,and the system supports
multiple languages.
Laser Source
--
Compared with similar products,the light laser has a higher photoelectric performance conversion ability ,a more stable beam,
and a stronger anti-reflection ability.
Cutting Sample
Certifications

Our products have been sold to over 130 countries and regions and received recognition from over 8,000 partners at home and abroad, creating excellent reputation.
FAQ

1. Do you have the CE document and other documents for customs clearance? A: Yes, we have the Original. At first, we will show you and after shipment, we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
2. Payment terms? A:trade assurance/TT/West Union/Paypal/LC/Cash and so on.
3. What's the max. cutting thickness? A: Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass, and other high-reflection sheet metal.
4. Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials.
5. How long is the delivery time?
A: For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to the client's specific requirements, it will be 15 to 30 days.
