Xt-X-4b Operating Microscope Used in Orthopedics, Hand Surgery, Ophthalmology, Plastic Surgery, Gynecology and Other Surgical Microsurgery Microvascular

Product Description

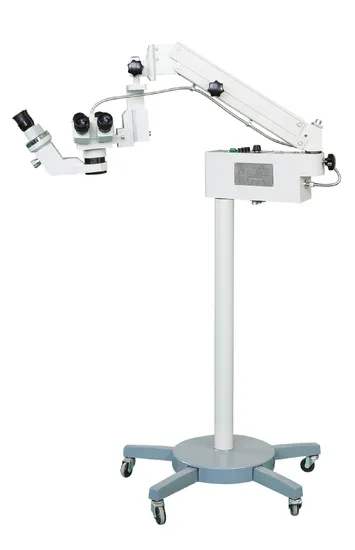

XT-X-4B type surgical microscope
Purpose
XT-X-4B operating microscope is mainly used in orthopedics, hand surgery, ophthalmology, plastic surgery, gynecology and other surgical microsurgery microvascular and nerve anastomosis and animal experiments.
Product Features
The imaging is clear and the body vision is strong.
Two doctors observe the same light path.
Wide field of vision, cold light source coaxial illumination.
With assistant mirror, three people operate at the same time.
Foot control fine-tuning, light and flexible, easy to operate and carry.
Optional Accessories
CCD system
photographic system
Technical parameters
Main mirror eyepiece magnification: 12.5X Alf type wide-angle eyepiece
objective focal length: 200mm
working distance: 200mm
main mirror total magnification: 10X
assistant mirror magnification: 4X (optional 4-20X continuous magnification)
field of view diameter: 27.5mm ,assistant mirror field of view diameter: 52mm
pupil distance adjustment range: 55mm-75mm
diopter adjustment range: ± 6D
lighting mode: coaxial cold light source lighting, 8V 50W German OSRAM halogen dimming,
manual: ≥ 45000LX
rack spring arm adjustment range: ≥ 300mm
electric fine adjustment lifting range: ≥ 40mm, speed: ≤ 2.5 mm/s
cross arm extension radius: 800mm
power supply voltage and frequency: 220V 10% 50Hz

Main mirror eyepiece magnification	12.5X Alf type wide-angle eyepiece
objective focal length	200mm
working distance	200mm
main mirror total magnification	10X
assistant mirror magnification	4X (optional 4-20X continuous magnification)
field of view diameter	27.5mm
assistant mirror field of view diameter	52mm
pupil distance adjustment range	55mm-75mm
diopter adjustment range	± 6D
lighting mode	coaxial cold light source lighting, 8V 50W German OSRAM halogen dimming,
manual	≥ 45000LX
rack spring arm adjustment range	≥ 300mm
electric fine adjustment lifting range	≥ 40mm
speed	≤ 2.5 mm/s
cross arm extension radius	800mm
power supply voltage and frequency	220V 10% 50Hz

---
