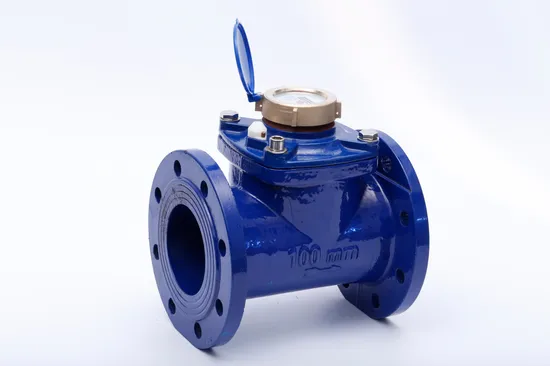

ISO 4064 Class Bwoltmann Bulk Water Meter DN100

Product Description

Product features:
Woltmann detachable type
Dry-dial,magnetic drive
Selected high quality materials for steady and reliable characteristic ,low head loss and enable use a long life span
Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term
Steady and reliable performance
Universal use ,without removing the meter from the pipeline for a easy maintenance and replacement.
Application:
This range of water meter is used to measure the total quantity of cold (hot) water which consumed in industrial and mining enterprise passing through the pipeline .
Installation requirements: Meter should be installed in horizontal position with the register face upwardsPipe line must be flushed before installationThe meter should be constantly full of water during operation Maximum permissible error:
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:
Water temperature:0ºC≤t≤50ºC (For cold water meter)
Water pressure: ≤10bar (16bar on request)

Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow		Qt Transitional Flow	Qmin Min Flow		Starting Flow		Min Reading	Max Reading
		m³/h						L/h		m³
50	B	30	15		3	0.45		150		0.01	9999999
65	B	50	25		5	0.75		170		0.01	9999999
80	B	80	40		8	1.2		280		0.01	9999999
100	B	120	60		12	1.8		400		0.01	9999999
125	B	200	100		20	3		800		0.01	9999999
150	B	300		150	30		4.5		1200	0.01	9999999
200	B	500		250	50		7.5		1500	0.01	9999999
250	B	800		400	80		12		2500	0.01	9999999
300	B	1200		600	120		18		6000	0.01	9999999

---
