Product Details
Product Description
Product Description
JP75 Series Technical Specifications
Item
| Value
| Item
| Value
|
PE pipe diameter
| 75 mm
| Applicable longitudinal slope
| ≤15%
|
PE pipe length
| 300-500 m
| Single spray gun working pressure
| 0.2 - 0.6 Mpa
|
Total flow rate of truss nozzle
| 13.2 - 38.3 m3/h
| Irrigation uniformity
| > 0.85
|
Inlet working pressure
| 0.5 - 1.0 Mpa
| Single spray gun spray width
| 34 - 74 m
|
Truss width
| 30 m
| Irrigation area per operation
| 1 - 2.2 ha
|
Truss rotation angle
| 360°
| Truss height from ground
| 1.5 m
|
Precipitation depth
| 7 - 90 mm
| nozzle cart track width
| 2,000 - 2,800 mm
|

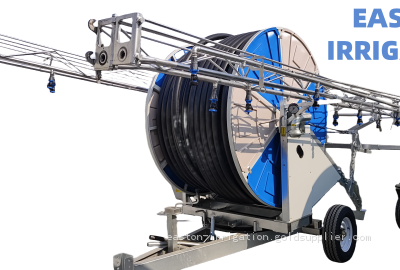

Spraying boom irrigation equipment
Easton 30-meter flexible folding and rotation truss sprinkler irrigation machine, driven by water turbine, incorporates the classic design concept of CASELLA, precise irrigation. Semicircular refraction sprinklers, and PZ full circle refraction sprinklers can be installed. It can also be equipped with multiple nozzles (Such as Nelson), that are engineered to evenly distribute water over a wide area. The nozzles are adjustable to meet different irrigation needs, whether it’s a large-scale farmland or a small-scale horticultural plot. This ensures thorough irrigation, preventing over-watering in some areas and under-watering in others. So the overall water-use efficiency is enhanced, and the growth and yield of crops are significantly improved.
Its main performance are low pressure, water saving, energy saving, high efficiency of sprinkler irrigation, good atomization performance and small influence on wind and other environment.
And It has been optimized and improved to be suitable for crops with special requirements for water and nutrients specially. The durability and reliability of spraying boom irrigation equipment make them a cot effective long term investment for farmers.
Features
• Made of corrosion resistance 304 stainless steel.
• Improved and upgraded design of truss wings.
• The upgraded segmented Retractable structure makes it truss wings to fold symmetrically easily.
• Automatic stop structure makes more reliable extension and operation.
• 30 - meter extension width of truss wing, and the one-way spray width is up to 38m.
• The rotation function of retractable folding truss can effectively avoid obstacles in the field.
• Excellent irrigation atomization and uniform irrigation, not affected by wind direction.
• Easy to install and disassemble, it can be quickly put into use, saving time and labor costs.
>>
