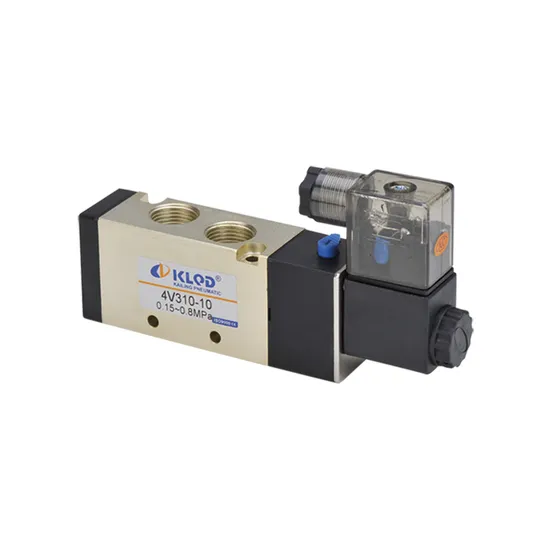

4V Series 5/2 Way 4V310-10 Single Electric Control Solenoid Valve

US$8.50 1 Piece (MOQ)

Basic Info.

Model NO.
4V310-10
Actuator
Electric
Connection Form
Thread
Type
Pilot Operated
Material
Aluminum Alloy
Pressure
Ordinary Pressure
Valve Structure
Pilot Piston Structure
Power Supply
AC or DC
Usage
Safety
Standard
DIN
Port Size
3/8′′
Motion Pattern
Inner Guide Type
Working Pressure
0.15~0.8MPa
Max.Pressure Resisance
1.2MPa
Effective Section Area(mm)
30mm2(CV=1.6)
Ambient Temp.(Celsius)
5~50
Voltage Range
-10%~+10%
Power Consumption
AC:4.5va DC:3W
Wiring Form
Lead Wire or Connector Type
Connection
Female Thread
Transport Package
Plastic Bag + Inner Box + Carton Box
Specification
CE/ ISO/ROHS
Trademark
KLQD
Origin
Ningbo, China
HS Code
8481804090
Production Capacity
10000sets/Month

Product Description

4V Series 5/2 Way 4V310-10 Single Electric Control Solenoid Valve
4V 3 10 10 B W AC220V
Specification
Code
4V:5/2(3) Way
Solenoid Valve
4A:5/2(3) Way
Pneumatic Control Valve
3V:3/2 Way Solenoid Valve
3A:3/2 Way
Pneumatic Control Valve
Series Code
300 Series
10:Single-head Double position
20:Double-head Double-position
30C:Double-head Three-position
Close Type
30E:Double-head Three-position
Exhaust Type
30P:Double-head Three-position
Pressure Type
Port Size
08:1/4''
10:3/8''
Joint Pipe Form and Initial State
Blank:Pipe Connection Type
B:5/2 Way Plate Connection Type
5/3 Way Plate Connection Type
NC:3/2 Way Normal Close Type
NO:3/2 Way Normal Open Type
Wiring Form
Blank:
Standard
Connector
LD:Brown with Lighting
Connector
LD1:White with Lighting
Connector
W:Lead Wire
Type
Standard Voltage
DC12V
DC24V
AC24V
50Hz/60Hz
AC110V
50Hz/60Hz
AC220V
50Hz/60Hz
AC380V
50Hz/60Hz
1.Working medium:40 Micron Filtered Air
2.Working pressure:0.15~0.8MPa
3.Ambient Temperature:5~50ºC
4.Insulation&Protection Class:F Class. IP65
5.Highest Action Frequency:5 Cycle /Sac
6.Internal hole adopts special processing technology which has little attrition friction,low star pressure and long service life.
7.Several standard voltage grades are optional.
Working Voltage:DC12V DC24V AC110V AC220V
Packing & Delivery
Payment
Application
Our Company
NingBo Kailing Pneumatic Co ,LTD. is a professional company engaged in the production of Solenoid Valves and pneumatic parts.Our company has strong techologies and high capability in research and development of new products.The company has fine workmanship amd perfect inspection techniques. The products include Solenoid Valve , Air source treatment unit , control element and executive element etc which are widely used in industries such as machinery , metallurgy, food , textile and environmental protection .
FAQ
Q1. Is sample order acceptable?
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry .
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
Q5. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
