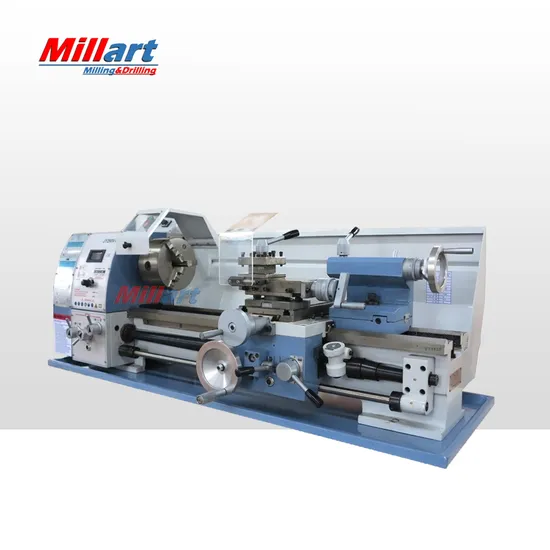

High Quality Horizontal Metal Machine Lathe Jy290vf, Mini Manual Bench Lathe

Product Description

Product description:
Technical parameter :
Technical parameter :

Model	JY290VF
Distance between centers	700mm
Swing over bed	280mm
Swing over cross slide	165mm
Width of bed	180mm
Taper of spindle bore	MT5
Spindle bore	38mm
Number of spindle speeds	variable speed
Range of spindle speeds	50-1800rpm
Range of longitudinal feeds	0.07 -0.40mm /r
Range of inch threads	8-56T.P.I 21kinds
Range of metric threads	0.2 -3.5mm 18kinds
Top slide travel	80mm
Cross slide travel	165mm
Tailstock quill travel	80mm
Taper of tailstock quill	MT3
Motor	1.1KW
Packing size	1400 × 700 × 680mm
Net /Gross weight	220kg/270kg

Standard accessories: Jaw chuck,
Splash guard,
Chip tray,
Toolbox &tools
Optional accessories:
Steady rest
Follow rest
Face plate
4 jaw chuck
Live center
Stand base
Lathe tools
Thread chasing dial
Spindle cover
Lead screw cover
Tool post cover
Side brake
DRO
Quick change tool post Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
