5ml Eye Dropper Injection Blow Molding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

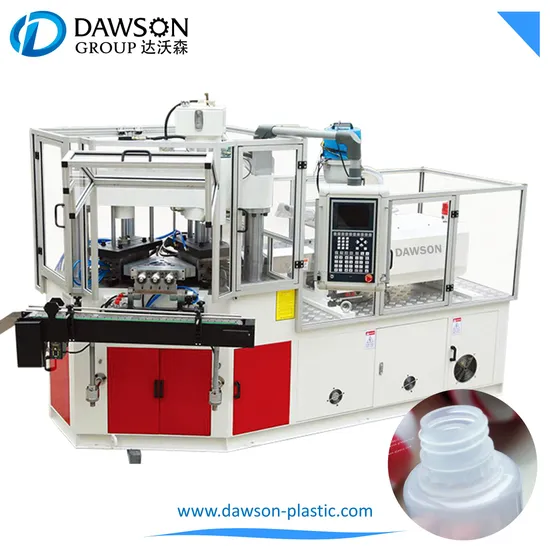

Injection Blow Molding Machine IBM35D

INJECTION BLOW MOLDING MACHINE IBM35D PARAMETERS

Item		Unit	Date
Injection system	Screw Diameter	mm	40
	Max. Theoretical injection capacity	G	176
	Heating capacity	KW	7.2
	No. of heating area	Qty	3
Clamping & blowing system	Clamping force of injection	kn	350
	Clamping force of blowing	kn	40
	Opening stroke of mold platen	mm	120
	Max. Platen size (L×W)	mm	420×340
	Min. Mold thickness (H)	mm	180
	Heating capacity of mould	KW	2.8
Product dimension range	Suitable bottle range	ml	3-800
	Max. bottle height	mm	≤180
	Max. Dia. of bottle	mm	≤80
	Dry cycle	s	4
Hydraulic driving system	Motor power	KW	11/15
	hydraulic pressure	Mpa	14
Pneumatic system	Min. Air pressure	Mpa	≥0.8
	Discharge rate of compressed air	M3/mm	≥0.7
Cooling system	Water flowage	M3/h	3
	Total rated power with mold heating	KW	21/25
Machine information	Dimension	M	3.1×1.2×2.2
	machine weight	Ton	4.0

Feature
* Excellent plasticizing unit

* Bridge clamping unit for synchronism mould open/close, cycle time less

* Servo system can save 35 to 40% energy compared to normal system

* Servo rotary, precise, long using time, easy maintenance, save energy.

* Optional injection with all-electric way, replacing hydraulic way * CE certificate
Configuration of Injection Blow Molding Machine

* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves): YUKEN brand Ex JAPAN.

* Pneumatic valve connector: FESTO Ex Germany.

* Oil seal: VALQUA brand Ex JAPAN.

* Controlling system: Act Technologies

* Electronic Rulers: Italy GEFRAN

* Molded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.

---
