K4 Full-Auto Blow Molding Machine for Easy Installation and Starting

Product Description

K4 Full-auto Blow Molding Machine for Easy installation and starting
Model: k4
Features:
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: Less than 0.3percent.

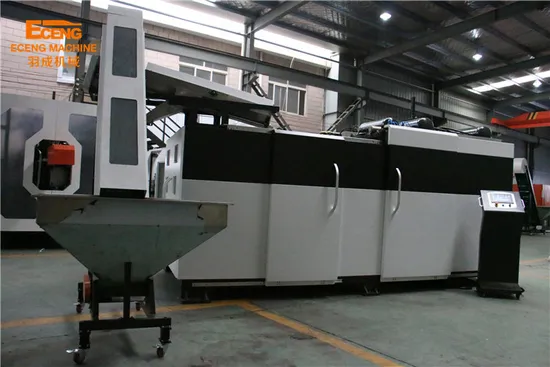

Automatic PET Bottle Blow Moulding Machine is a high speed linear blow molding machine which is developed and manufactured by our Company using the most advanced bottle blowing technology in the world. Owing to the machine's high degree of automation, high production efficiency, high safety, high stability and reliability, the products made will not be contaminated in any intermediate steps, and it can be matched up directly with the production line of filling and can be widely used in production of mineral water, carbonic acid beverage, juice, tea and heat-resistence bottle product.
Product Parameters

Model K4
Bottle type specification	Cavity	4
	Max.volume	2L
	Bottle mouth maximum overall diameter	25-29mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Capacity specification	Theory output	7000BPH
	Bottle type volume	600ML
	Bottle type weight	13.5g
	Bottle type	Round
Power specification	Light tube quantity	16pcs
	Light tube power	1.25KW
	Maximum heating power	20KW
	All electric machine installation	29KW
	Actual consumption	30%--60%
Air pressure specification	Work pressure	5-6kg/cm2
	Blow bottle pressure	25-45kg/cm2
	Higher -pressure gas consumption	6000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
	Temperature range	10ºC
	Consumption	8000kcal/hr
	Forzen water flow	120L/min
Machine specification	Machine size	3.6x1.6x1.9
	Machine weight	6.1tons

company information


Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We'd like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.
With Customers
FAQ
After Sales Service
1.Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.
