with 160t Punching Machine Pedal Plate Roll Forming Machine

Product Description

Product Description
The profile
The equipment flow
De-coiler→ Leveling→servo feeding & punching&hydraulic punching→roll forming→hydraulic cutting→ out table

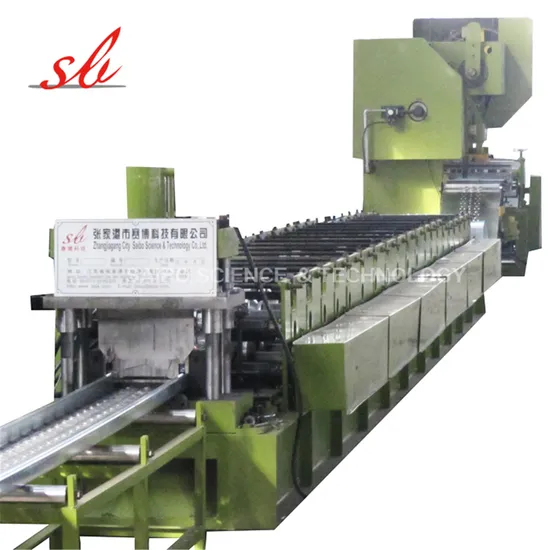

Machine photos for reference
Product Parameters
General structure of equipment
1. De-coiler
Parameter: Width of material: 580mm thickness: 1.25- 1.5mm;
Inner expansion range: 480-560 mm;
The Diameter: φ 1200mm; The Max loading: ≤ 5T
Motor power: 5.5kw frequency change control
Hydraulic power: 4kw
Press material type: Pneumatic press material
Feeding speed: 0-15m/min, adjustable
2. Leveling machine
A: Working roller: Nine rollers type leveling machine
B: Feature of structure: After the quenching and tempering, chrome-plating processing, the rigidity, surface roughness of the roller etc. Are all enhance greatly; It is composed by the clamping roller and the leveling roller, the clamping roller may the independent control, the leveler has one pair of horizontal guide roller and two pairs of vertical guider roller and easy to adjust by hand wheel. Between the leveler and the feeding device, there is optical sensor, sends out the feedback signal to the control system, the control system sends out the instruction to the frequency conversion motor to change speed, Achieves the uninterrupted level goal.
3. Servo feeding machine
A: Function: Material feeding
B. Feature: Uses the servo motor-driven. Multistage type feeding: The liquid crystal touching screen demonstrated is advantages for the change, establishes various technical parameters. The auto-induction start system and the punch press linkage (control punch press start).
4. Punching machine
Punching machine carrying capacity 125T
Punching machine model: JH-21-125
Punching machine adopt continue punching
Speed: 40 time /MIN
Brand of punching machine: Yang Li
5. Roll forming part
Forming station: 28sets
The coil width: Balance to profiles
The diameter of the roller axis: ¢ 80mm
Roll mould material: Gcr15, quenching treatment: HRC58-62°
Drive type: 22kw motor
Structure: Wire electrode cutting
6. Hydraulic cutting
Cutting type: Hydraulic cutting
Hydraulic power: 5.5kw
Material of blade: Cr12, quench treatment, hardness HRC56-58
Quantity: 1
7. Run-out table
Length: 6m
Quantity: 1

NO.	Name	Quant.	remark
1	Auto-de-coiler	1	5tons hydraulic decoiler
2	Leveling machine	1	5.5kw frequency change drive motor, speed adjustable
4	Servo feeder	1	Servo motor drive, 3kw
5	Punching machine	1	125tons
6	punching mould	1	Material is Cr12mov
7	Main forming machine	1	thickness 1.25-2mm material of roller:GCr 15
8	Hydraulic cutting machine	1	Required length
9	Cutting blade	1	Cr12
10	Run-out table	1	With slidecylinders
11	Electric panel	1	PLC control system

View more products,click here...
https://saiborollforming.en.made-in-china.com/product-list-1.html

Warranty
Warranty
warranty: 1 year warranty from date of shipment
guarantee:
1: guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. repairs will be made free of charge.
2: repairs will not be performed free of change even during the guarantee period in the follow circumstances
- damage occurs due to a natural disaster
- malfunction occurs due to user error
- malfunction occurs due to modifications
- malfunction occurs due to further movement or shipment after installation
3: air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
After Sales Service
Servies
Saibo's Online Service.
Saibo Machinery Services Online gives you fast and easy online access to your Installed Base to order your SAIBO original spare parts and explore the Options & Upgrades relevant for your line.
It is a user-friendly interface, available 24/7, in 9 languages, and is your one-stop online shopping. Designed to make your life easier in your day to day business, it will help you to improve your line and maintain its performance.
SAIBO Services Online helps you:
1 - Machine running video
2 - Watch our factory online
3 - Supply a running line in your country, you can see the machine running directly.
Packaging & Shipping
7.Packing & Delivery

Packing	1.Machine is nude loaded in the container .
	2.The electric controlling box is packed by protect film .
	3. All the spare parts are put in the wooden box .
Delivery	1. Sea shipping .
	2. Air shipping for sampling .
	3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry .

View more products,click here...
https://saiborollforming.en.made-in-china.com/product-list-1.html Company Profile
About Saibo
40 years history in Metal roll forming machine industry30 years experienced engineersFocus on machine quality and automatic with reasonable priceExperienced technician can be sent to install machines abroad200+ sets of machines exported each year
24 hours on line service
Zhangjiagang City Saibo Science & Technology Co.,Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of different kind purlin/channel which make from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in zhangjiagang city,Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
Zhangjiagang Saibo Science & Technology Co., Ltd engaged in the steel structure industry in 30 years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and regular customers . All of our technology team and marketing person all more than 10 years working.In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality ,through design, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
View more products,click here..
https://saiborollforming.en.made-in-china.com/product-list-1.html
FAQ
FAQ
Q1 : How to find Saibo? 1. Search Made-in-China find Saibo, suppliers and manufactrue and not traders
2. Visit exhibition in different countries
3. Send Saibo an request and tell your basic inquiry
4. Saibo sales manager will reply you in short time and add instant chatting tool
Q2 : You are welcome to our factory at any time .
1. If we can fullfill your request and you interested in our products, you may pay a visit to Saibo site
2. The meaning of visiting supplier, because seeing is believing, Saibo with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
Q3 : How to guarantee your funds to be safe and delivery to be on time ?
1. By letter of credit, you can lock the delivery time easily.
2. After the factory visit, You can ensure the facticity of our bank account.
Q4 : See Saibo how to ensure the quality !
1. In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
2. Each component before assembly needs strictly control by inspecting personnel.
3. Each assembly is in charged by a master who has working experience for more than 5 years
4. After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
Q5 : The after-sale service of Saibo !
1. After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
2. After the commissioning, we will package the equipment by standard export package for shipment.
3. According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4. Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.

---
