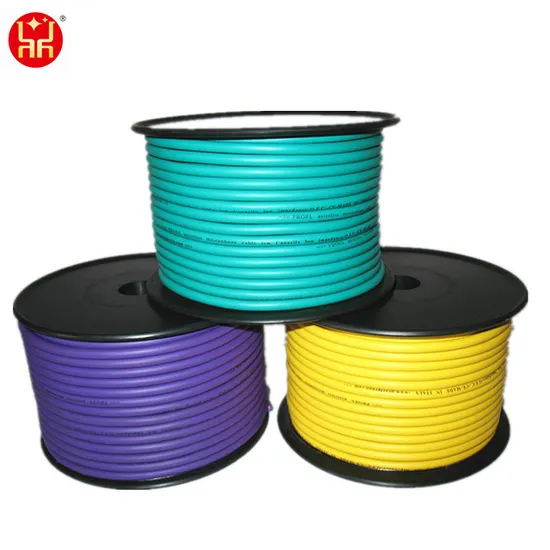

100% Braiding Best Factory Price Flexible Microphone Cable

Product Description

Product DescriptionHigh Grade Low Noise Microphone Cable
1)standed bare copper
2)pvc insulation
3)cotton thread or other filled
4)copper braid shield
5)flexible TPE sheathed
Detailed PhotosProduct Parameters

CONDUCTOR	INSULATION O.D(mm)	COTTON YARN	AL FOIL	BRAID/WRAP SHIELD	MON O.D (mm)
1CX18/0.12	1.3	filled	/	32/48/64/80/0.12mm	5.0
1CX30/0.12	1.8	filled	10*0.04	32/48/64/80/96/0.12mm	5.8
1CX28/0.15	2.1	filled	10*0.04	32/48/64/80/96/0.12mm	6.0
1CX28/0.12	2.1	filled	10*0.04	32/48/64/80/96/0.12mm	6.0
2CX10/0.12	1.3	filled	10*0.04	32/48/64/80/96/0.12mm	5.0
2CX23/0.12	1.5	filled	10*0.04	32/48/64/80/96/112/0.12mm	6.0
2CX32/0.10	1.5	filled	10*0.04	32/48/64/80/96/112/0.12mm	6.5
2CX21/0.12	1.6	filled	10*0.04	32/48/64/80/96/112/0.12mm	6.5
2CX18/0.12	1.3	filled	10*0.04	32/48/64/80/96/0.12mm	6.0
2CX20/0.12	1.6	filled	10*0.04	32/48/64/80/96/0.12mm	5.3
2CX10/0.12	1.3	filled	10*0.04	32/48/64/80/96/0.12mm	6.0
3CX18/0.12	1.3	filled	10*0.04	32/48/64/80/96/0.12mm	6.0

No. of core	Conductor construction		Braid	Max. diameter of cable
	AWG	construction No./mm		mm
1	26	10/0.12	32/0.12 48/0.12 64/0.12 or to client's require	5.8
	24	19/0.12		5.8
	22	26/0.12		5.8
	20	42/0.12		5.8
2	26	10/0.12		6.0
	24	19/0.12		6.0
	22	26/0.12		6.0
	20	42/0.12		6.0
3	26	10/0.12		6.0
	24	19/0.12		6.0
	22	26/0.12		6.0
	20	42/0.12		6.0

Packaging & ShippingPacking length : 40m/roll ,60m/roll ,91.4m/roll 100m/roll , 200m/roll , 300m/roll ; 305m/roll
Inner packing : plastic cover / wooden drum / paper drum ;
Outer packing : 2/4/ 6 roll / carton box ;
Other packing according to customers' request !
Company ProfileJiaxing Dingxin Electronic has specialized in manufacturing cable and its parts since 2012.
Our products mainly including audio and video cable, speaker cable, microphone cable, telephone cable, electric wire ,monitor cable, alarm cable, fire alarm cable and related parts& accessories etc.
All cables export only . We have many years of production experience and are familiar with the needs of all regions of the world
Our cable products are exported to all parts of the world by taking advantage of our hard-won reputation, honesty, reliability and quality, Dingxin's goal is to ensure product quality and better serve customers
At the same time, we are looking for global partners overseas. If your company is the end user, distributor or agent of cables, please contact us.
We look forward to working with you in the near future.
