Angle Stay Thimble Eyelet Guy Attachment Stay Bracket

Product Description

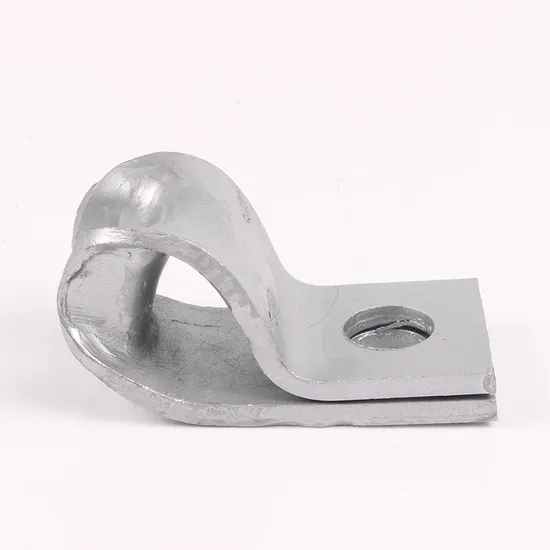

Guy Hook What is a guy hook?
The main objective of a guy hook is to provide a reasonable and systematic way of fastening guys to poles and put an end to guy wires. How is a guy hook used?
The guy hook made up of hot-dip galvanized and constructed of high-quality steel helps the rounded oval to prevent damage to the guy strand and strands.
What is the application of a guy hook? To prevent the guy strand slipping on the pole, the dead-end of the guy hook attaches over the hook while the guy hook attaches to the machine with the bolt, the center mounting hole and a mounting hole in heel accommodate 5/8" bolts.
Features:
Helpful in intercepting wire at any angle Greater protection to wood fibres Two spurs to resist pole splitting Good for round or flat surfaces Backside cheats for wood pole installation Hot-dip galvanized finished Integral lad spur Cast-ductile iron guy-hook attachment

Part No.	Type	Width Across Hooks	Base Width	Overall Length	Mounting Hole Dia.	Thickness	Lower Hole Dia.
		A	B	C	D	E	F
D135N	1	3.63"	2.50″	4.75"	0.69"	1.62″	0.56"
D135ILS	2	3.63"	2.50″	4.75"	0.69"	2.25″	Integral Lag Spur
D136N	1	3.63"	2.5″	4.87″	0.81"	1.73"	0.56"
D136ILS	2	3.63"	2.5″	4.87"	0.81"	2.25"	Integral Lag Spur

---
