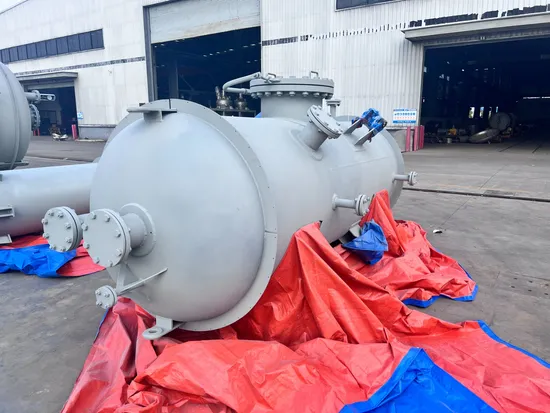

GB/T150 Low-Pressure Condensed Liquid Flash Evaporation Recovery Tank

Product Description

The Low-Pressure Condensed Liquid Flash Evaporation Recovery Tank is a precision-engineered pressure vessel designed for safe and efficient separation of low-pressure steam from condensate in industrial systems. Manufactured in compliance with GB/T 150-2011 standards under A2-level pressure vessel certification, this equipment ensures reliable performance in energy recovery and steam management applications.
Key Features
▸ Robust Construction:
Main material: Q345R low-alloy steel (GB/T 713 compliant)
Design Temperature: 200ºC
Design Pressure: 0.9 MPa (positive)/-0.1 MPa (vacuum)
Hydrostatic Test Pressure: 1.2 MPa
▸ Operational Excellence:
Working Medium: Low-pressure steam & condensate
Total Volume: 3.85 m³
Self-weight: 1,900 kg (dry weight)
▸ Compliance & Safety:
Full compliance with GB/T 150-2011 Pressure Vessel Code
A2-level manufacturing license certification
Strict quality control throughout production process
Technical Specifications
Parameter Specification

Design Pressure	0.9/-0.1 MPa
Test Pressure	1.2 MPa
Design Temperature	200ºC
Material of Construction	Q345R
Volumetric Capacity	3.85 m³
Empty Weight	1,900 kg
Connection Standards	Customizable per client requirements

Application Scenarios
• Waste heat recovery systems
• Steam power plant condensate management
• Industrial process steam separation
• Thermal energy storage systems
• Chemical processing plants
Quality Assurance
Manufactured with complete traceability:
Material certification for all components
NDT testing (RT/UT/MT/PT as applicable)
Full documentation package including:
Pressure vessel data sheet
Material certificates
Hydrostatic test report
ASME-standard drawings (available upon request)


1. Q:Are you a manufacturer or trading company?
A:We are a manufacturer with over thirty years of experience in China.
2.Q:Can we visit your factory before placing orders?
A: Sure, warmly welcome to our factory!
3.Q:What's the information needed if I send one inquiry ?
A : Please tell us the working conditions, mediums,temperature ,pressure, equipment ' s material,size,quantity, and other special requests.
4.Q:Which countries you can ship the equipment to?
A : Russia, Iraq, New Zealand, etc...

---
