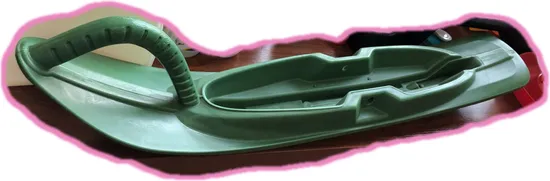

Made in China Plastic Snowboard/Skis Extrusion Blow Molding Machine

Product Description

Description of equipment:
PE plastic bus seat/safety chair making Blow Molding Machine
Product Overview:
Performance&Advantages:
·Suitable for producing different kinds of bus seat,children safety chair, desk
board, playgroud facilities
·Adopt high output extrusion system,accumulating die head.
·According to the different material, optional JW-DB single
station hydraulic screen-exchanger system.
·According to the different product size, customized the platen
type and size.
·Optinal hydraulic servo control system.
·Optinal bottom sealing,take-out robot/product eject,core-pulling movement elements.
Technical parameters of machine:

Model	Unit	BM30	BM50	BM100
Max product volume	L	30	50	100
Dry cycle	PC/h	600	450	360
Die head structure	Accumulating type
Main screw diameter	Mm	80	90	100
Max plasticizing capacity (PE)	Kg/h	120	180	190
Driving motor	Kw	37	45	55
Accumulating volume	L	5.2	6.2	12.8
Oil pump motor power	Kw	15	18.5	22
Clamping force	Kn	280	400	600
Space between platen	Mm	400-900	450-1200	500-1300
Platen size W*H	Mm	740*740	880*880	1020*1000
Max. mold size	Mm	550*650	700*850	800*1200
Heating power of die head	Kw	20	28	30
Machine dimension L*W*H	M	4.3*2.2*3.5	5.6*2.4*3.8	5.5*2.5*4.0
Machine weight	T	12	13.5	16
Total power	Kw	95	110	135

Different kind of Control system of machine
Parison wall thickness control system
No1. human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
No2 . B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
No3 . Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head:
No1.The extruder uses screw and barrel, which is a famous brand all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
No2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system:
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system:
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system:
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy
Open&Closing system:
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system:
This auto-lubrication system can lubricate the system with a set cycle automatically.

Electric system
No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
Contact us !!
Foshan Bkwell intelligent equipment co.,ltd
Add: E04-1-04BLOK,LUNJIAO INTENSIVE INDUSTRIAL ZONE,SHUNDE DISTRICT,FOSHAN,CHINA

Web:jwellmachinery.en.made-in-china.com
