Forst Air Dust Arrestor Fiberglass Floor Filter Spray Booth Auto Painting Filter

Product Description

Forst Air Dust Arrestor Fiberglass Floor Filter Spray Booth Auto Painting Filter : Product Description Characteristic:
1.Fiberglass filter media
2.Large ventilation quantity
3.Small resistance
4.High dust holding capacity
5.Long operating life

Speciality:
1. Fiberglass filter media is made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.
2. It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching for PA-50/60/PA-100, especially suitable for using heat recovery system;
3. High strength fiberglass increasing structure; the windward side is green, the leeward side is white;
4. The low compression preformance maintains its outlook, which is completely useful for the filtration fiber to keep the oil mist and the dust;
5. Nonflammability, temperature resistance at 170°C;
6. The compression packing may save the fare and the storage in the transportation. After decompression, it will regain its original condition;
7. Outer frame may choose the paper frame, the falvanization iron frame, or aluminium alloy frame.

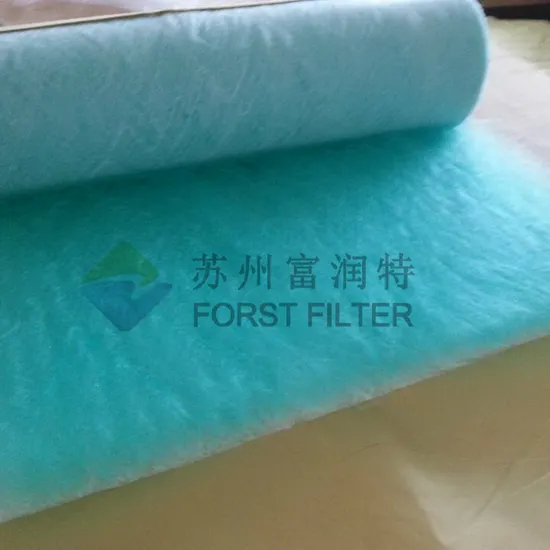

Detailed Photos
Functions 1.Main application to the auto electrophoretic paint filter and the fire-resistant steel casting plant for the flue gas dust removal processing system;
2.Used for the explosion grinding bag dust collector in the blast furnace and cement plant.
Product Parameters

Model	SFF/PA-50/60	SFF/PA-100
Average arrestance	92%-96%	97%-99%
Initial pressure drop	15Pa	20Pa
Final pressure drop	250 Pa	280 Pa
Air velocity	0.7-1.5.m/s	0.7-1.75.m/s
Dust holding at final	3200-3600g/m2	3600-4900g/m2
Temperature resistance	170°C	170°C
Temperature short peaks	190°C	190°C
Normal thickness	50/60mm	100mm
Normal size	0.8m*20 1.0m*20m 2.0m*20m	0.8m*20 1.0m*20m 2.0m*20m

Packaging & Shipping
FAQ Q1. Are you a factory or Trading CompanyA: We are a professional manufacturer in China, with more than 15 years experience.Q2. What is your terms of packing?A: We pack our goods in film bag first, then carton. If ship LCL, all cartons will be packed by Pallet.Q3. What is your terms of payment?A: T/T L/CQ4. What is your terms of delivery?A: EXW, FOB, CFR, CIF,Q5. How about your delivery time?A: Generally, it will take 5-12 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q6. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q7. What is your sample policy?A: We can supply the sample but the customers have to pay the sample cost and the courier cost.Q8. Do you test all your goods before delivery?A: Yes, we have 100% test before deliveryQ9: How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
