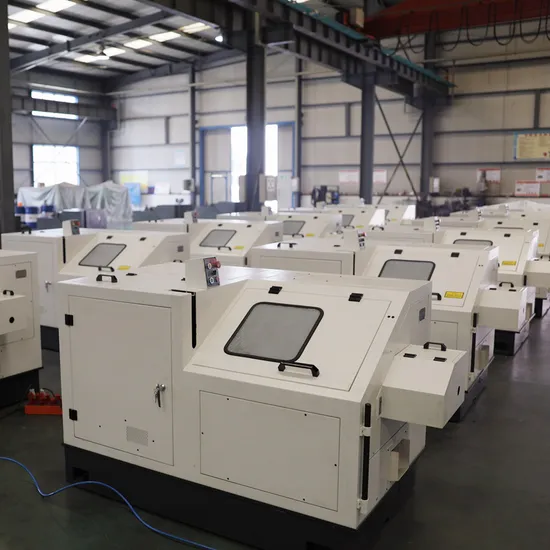

Screw Cold Heading Machine/M5

Product Description

PROLU	Screw Cold Heading Machine(380V)
Item	1	2	3	4	5	6
Model	JYX15-30GA	JYX15-37G	JYX15-50G	JYX15-63G	JYX15-76G	JYX15-100G
Max.blank diameter (mm)	2.3-5.2
Max.blank length (mm)	25	40	55	65	80	110
RPM (pcs/min)	260	220	200	155	140	105
Main die diameter (mm)	34.5×55	34.5×55	34.5×67	34.5×70	34.5×90	34.5×110
1st punch die (mm)	27×70	31×73				31×90.5
2nd punch die (mm)	25×70	31×73				31×98.8
Cut-off die (mm)	19×35
Cutter (mm)	10×32×63
Motor power (KW)(4HP)	4	3		2.2
Oil pump power (KW)(1/4HP)	0.33
Machine size (M³)	2.4×1.2×1.45	2.1×1.05×1.1	2.1×1.05×1.1	2.15×1.1×1.1	2.15×1.1×1.1	2.3×1.1×1.1
		2.25×1.2×1.45	2.25×1.2×1.45	2.25×1.2×1.45	2.25×1.2×1.45	2.5×1.2×1.45
Weight (KG)	2300	2200	2200	2250	2250	2350
		2300	2300	2350	2350	2450
Attach:1. Machine including wire straightener and wire stand. 2. Protection:half or full.3. Need auto checker, conveyor or inverter, please consult.
Machine Feature:
*Vertical sliding plate,widen and thicken, bigger size . entirety quench. Slide stabilization.
*Sliding block, cast alloy steel
*Mould pedestal, high processing accuracy.
*Pull rod,spring pedestal,straight line pedestal,knife rest pedestal, precision cast steel
*Install sliding block baseplate,shock absorption,antiwear,lengthen using life.
*Oil line reasonable layout, lubricate all parts.
*Curve sliding plate, entirety, without insert.
*Crankshaft,high strength and toughness,antiwear alloy steel,widen and thicken.
*Lifting transmission plate,cutting by laser cutting machine.impact toughness well, high strength.
*Second axle cam, control the accuracy 3%-5% millimeter
*Auto stop without lubricating oil
*Taiwan Electrical motor
*Main electric circuit: French brand

Company Profile:
Shandong Prolu Machinery Technology Co.,Ltd is the international trading company of shunda and yuanxu,behind steel ball cold heading machine and screw cold heading machine of ProLu,is the"cold forming " engineering mastery of 21 years of shunda and yuanxu.
Our development basic on continuing research of the productions,high-quality system,and raw material supply chin system. All machines and spare parts are 100% qualified be test by JinanBureau of quality and technical supervision,all meet the china and CE standard.
We have 90% market share in china with steel ball cold heading machine,and screw cold heading machine be sold in china in 5 years.
---Total 16000 square meter,workshop 10000 square meter, office area 1000 square meter,4 spare parts warehouses, 7 workshops
---R&D team:27 engineers,spare parts process team:80 workers and machine assembly team:40 workers
---30 lathe,12 high precision CNC lathe,17 middle-size CNC center of lathe,2 large-size CNC center of lathe
---95% self-produce spare parts of steel ball and screw cold heading machine,independent research,
high-precision process,quality guarantee

---
