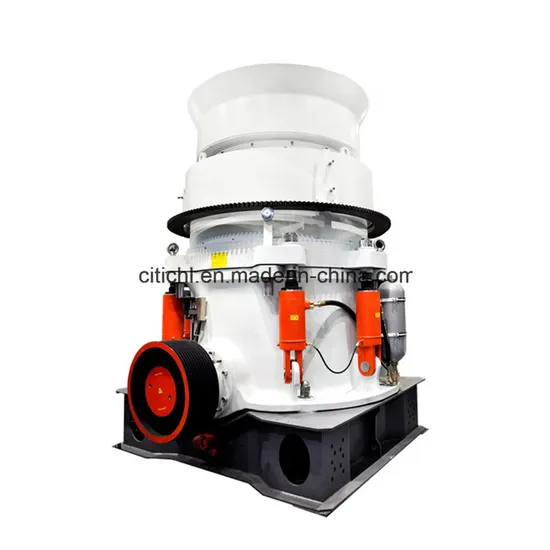

China Manufacture High-Efficiency Stone Hydraulic Vertical Cone Crusher

Product Description

China Manufacture High-efficiency Stone Hydraulic Vertical Cone Crusher
Cone crusher is suitable for crushing ore and rock which is above 300MPa hardness. It has advantages of reliable structure, high production efficiency, easy to modulate, high cost- effective. Its spring insurance system is the protecting gear for overload; this system can make foreign matter pass the crushing cavity, but not damage the machine, using dry and water two sealing type, it can segregate rock powder and lubricant, to ensure reliable operation. The crushing cavity type is decide by ore's purpose, normal type is used for medium crushing, medium type is used for fine crushing, short type is used for fine crushing.
Working principles of cone crusher:
The cone crusher for sale is mainly composed of frame, fixed cone assembly, movable cone assembly, spring mechanism, bowl pedestal part, transmission device and so on, and the auxiliary device includes electrical system, diluted oil lubrication station and hydraulic cleaning chamber system. When Cone crusher works, the motor drives the drive shaft through the pulley and V-belt .The drive shaft and a pair of bevel gear make the eccentric sleeve rotating and this makes the cone axis swing, so sometimes the crushing wall is near the rolling mortar wall, but sometimes they are far away from each other. Stones in the crushing cavity are extruded, impacted, and boned continuously, finally they are crushed.
Technical parameters:

Model	Cavity Type	Max. feeding size(mm)	Adjustable range of discharge opening(mm)	Capacity (t/h)	Motor power (Kw)	Weight (t)	Overall dimension (mm)
HCC36B	Fine	85	9-22	46-94	75	14.2	2656x1746x2241
	Coarse	150	61-168	61-168
	Extra Coarse	152	122-168	122-168
HCC36D	Fine	35	28-93	28-93	75	14.7	2656x1746x2241
	Medium	65	37-103	37-103
	Coarse	85	61-133	61-133
HCC51B	Fine	115	112-189	112-189	160	25.9	2983x2354x3156
	Medium	178	136-261	136-261
	Coarse	205	177-359	177-359
	Extra Coarse	220	243-369	243-369
HCC51D	Fine	54	37-168	37-68	160	26.4	2983x2354x3156
	Medium	76	84-168	84-168
	Coarse	89	112-234	112-234
	Extra Coarse	113	215-243	215-243
HCC66B	Fine	178	186-337	186-337	220	50	3911x2870x3771
	Medium	205	266-430	266-430
	Coarse	228	308-654	308-654
	Extra Coarse	313	444-664	444-664
HCC66D	Fine	60	93-215	93-215	220	51	3911x2870x3771
	Medium	76	140-289	140-289
	Coarse	113	196-346	196-346
	Extra Coarse	125	261-346	261-346
HCC84B	Fine	236	392-748	392-748	315	88	4613x3302x4638
	Medium	284	626-1028	626-1028
	Coarse	314	813-1308	813-1308
	Extra Coarse	391	906-1402	906-1402
HCC84D	Fine	89	196-420	196-420	315	90	4613x3302x4638
	Medium	113	365-523	365-523
	Coarse	151	468-617	468-617
	Extra Coarse	172	523-673	523-673

---
