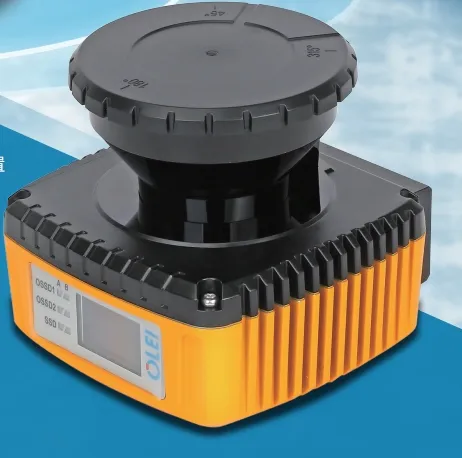

Advanced Safety Laser Scanner for Collision Avoidance and Navigation

Product Description

Product Description

Protect range	≤5m@2%
Measurement range	≤40m@80%
Zone	≤64
Monitoring case	2
Scanning angle	270°
Measurement error	±30mm
Protection area resolution	20mm; 30mm; 40mm; 50mm; 75mm; 150mm
Angular resolution	0.167°
Response time	≤70ms
Multisampling	2-16
Scanning cycle	30ms
Protection degree	III
Operating voltage	24VDC
Consumed power	≤6W(non-load)
Type	Type 3 (IEC61496)
Safety degree	SIL 2 (IEC61508/IEC62061)
Category	Cat.3 (ISO13849)
Performance rate	PL d (ISO13849)
Function	Start interlock, restart interlock, delay restart, External Device Monitoring (EDM), Mute function, Protected area switching, measurement data output (via Ethernet)
CAN output	1
OSSD	2
Protection class	IP65
Housing	Aluminium alloy
Front window	PC
Contection cable	Network cable :0.3m l/O& Power cable :2m
Operating temperature	-10ºC~+50ºC
Storage temperature	-25ºC~+70ºC
Humidity	95% RH, no condensation
Ambient light	≤3k Lux
Vibrations	IEC 60068-2-6/IEC 60068-2-64/IEC 60721-3-5/ IEC TR 60721-4-5/IEC 61496-3 5M1 (IEC 60721-3-5)
Shock	IEC 60068-2-27/IEC 60721-3-5/ IEC TR 60721-4-5/IEC 61496-3 5M1 (IEC 60721-3-5)
Altitude	≤2300m
EMC	IEC61496-1, IEC61000-6-2,IEC61000-6-3
Laser safety degree	Class I
Wavelength	905nm
Remission factor	>1.8%
Blind zone	≤50mm(front window cover front 50mm area)

Detailed Photos
Product Parameters
Certifications
Our Advantages Solution Team - Professional, Young, and Powerful: Meet our vibrant team, seamlessly blending youthful enthusiasm with seasoned expertise. We are committed to delivering unparalleled solutions and exceptional support, merging energy with precision to elevate your projects with innovative and tailor-made solutions.Service - Over Ten Years of Sensor Experience: With a wealth of over a decade's expertise in sensor technology, our dedicated service team at Tianjin Yiyi Technology Co., Ltd. offers outstanding support and guidance. Rely on our seasoned experts to achieve superior performance and customer satisfaction with every sensor solution we provide.
After Sales Service At least 1 year guarantee period:
Enjoy unparalleled peace of mind with our comprehensive 1-year guarantee. This commitment underscores our dedication to delivering unrivaled quality and ensuring your utmost satisfaction.
Experience around-the-clock access with our dedicated online support, available 24/7 to swiftly address your inquiries and offer assistance whenever you need it.Receive bespoke attention with our exclusive one-on-one expert service, guaranteeing personalized solutions and support tailored precisely to your unique requirements.Benefit from our lightning-fast response times, ensuring your queries are met with immediate attention and any issues are resolved with utmost speed.Leverage our extensive on-site support services, expertly designed to optimize the performance and efficiency of your systems for maximum productivity.
