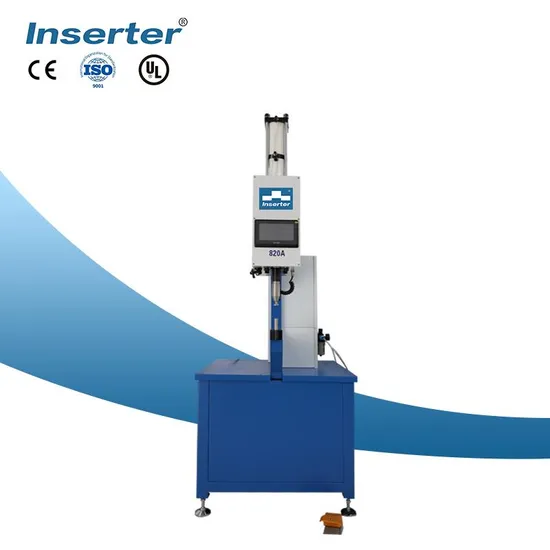

820A 8ton High Quality Easy Operate Air Fastener Insertion Machine

Product Description

Product Features
Product Description:
Kunshan Easy Fabrication Technology Co.,Ltd. presents:
Economical and reliable cast steel frame Super large working throat depth Flexibly adaptable to different processing requirements Driven by compressed air at 2bar-6bar, generating 80KN of ram force without hydraulic system Stamping force steplessly adjustable within the specified range Easy operation with PLC control Effective work with manipulators
Product Parameters

Model	820A
Machine Air Intake	3bar-6bar
Input Power	220V 1P 50HZ 50W
Upper Die Reciprocating Stroke	100mm
Riveting Capacity	M10 Nut M8 Stud M6 Standoff
Cylinder Stroke	100mm
Ram Force	0-8 Tons Infinitely Adjustable
Throat Height	340mm
Throat Depth	500mm
Force Stroke	8mm
Rack Thickness	135mm
Machine Size	1100*840*2000mm
Weight	450KG

FAQ Welcome to Kunshan Easy Fabrication Technology Co.,Ltd. Who are we?
We are Kunshan Easy Fabrication Technology Co.,Ltd., based in Jiangsu, China since 2011. Our products are sold across various regions including Southeast Asia, Eastern Europe, Western Europe, North America, and more.
Payment Terms:
We accept flexible payment methods such as Bank Transfer, LC, DP, West Union, Paypal, or a combination of terms as negotiated.
Shipping Options:
We offer shipping by sea, air, express, and more based on customer requirements.
How to Place an Order:
Contact us to confirm the suitable solution, plan, and model. Provide a copy of the purchase order to ensure smooth processing of your order.
Product Inspection:
We have a strict inspection process for product quality and packaging.

---
