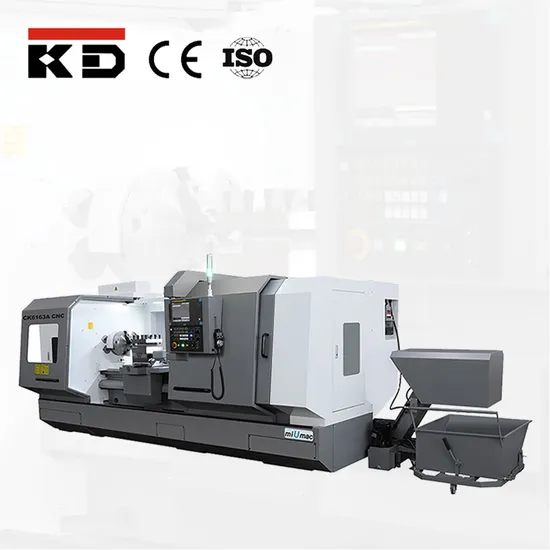

Heavy Duty and Precision CNC Athe Lathe Machine (CK6163A/1000)

US$3,000.00-50,000.00 1 SET (MOQ)

Basic Info.

Model NO.
CK6163A/1000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Bed Width
630mm
Spindle Nose
104mm
Spindle Speed
40-1000r/Min
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
180sets/ Year

Product Description

Heavy Duty and Precision CNC Lathe Machine (CK6163A/1000) Product Description
Product Specifications

MODELS
CK6163A
CK6180A
CAPACITY


Max.swing over bed
Ф630mm
Ф800mm
Max.swing over carriage
Ф360mm
Ф500mm
Width of bed
560mm
Distance between centers
1500/2000/3000
Max turning length
1400/1850/2850mm
TRAVEL


Max.cross travel(X)
440mm
500mm
Max.longitudinal travel(Z)
1500/2000/3000mm
FEED


Rapid feed for axis X
8m/min
Rapid feed for axis Z
10m/min
SPINDLE


Spindle nose
D11
Spindle bore
Ф104mm
Taper bore of spindle
Metric 1:20
Steps of spindle speed (manual)
4
Spindle speed
40~105, 80~205, 195~500, 385~1000rpm
TOOL POST


Tool post stations
4-way
Tool cross section
40×40mm
TAILSTOCK


External diameter of tailstock sleeve
Ф100mm
Taper bore of tailstock sleeve
M.T.NO.6
Max travel of tailstock sleeve
230mm
OTHERS


Min. input
0.001mm
Main motor power
11kw
Coolant pump power
370w
Overall dimensions(L×W×H)
(3700/4200/5200)×1660×1820mm
Net weight
3700/4780/5280kg
