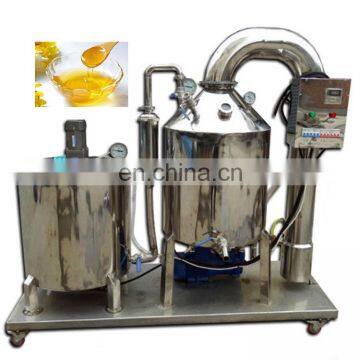

beekeeping equipment bee extractor / honey bee exactor / bee heney extractor machine
Introduction :
As the production of the honey, there should be a set of standardized production process to achieve. The so-called standardization is the special requirements of bee product processing itself and the most basic necessary production measures in the processing.
The original honey → Coarse filtration → Stir, preheating → Fine filtration → Low temperature, concentrated
Currently, honey processing machine main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.
Performance characteristics:
1. This equipment is made of 304 stainless steel.
2. Convenient operation, reliable use and high efficiency.
3. Vacuum state, can achieve higher vacuum and lower concentration temperature, is the ideal equipment for honey processing
Product Paramenters
Model
| FM-600
| FM-400
|
Production capacity
| 1.2-1.5t/8h
| 0.4-0.5t/8h
|
Machine dimension
| 1750*600*1660
| 1600*500*1555
|
Tank diameter
| 600mm
| 400mm
|
Tank height
| 600mm
| 600mm
|
The overall volume
| 140L
| 70L
|
Effective volume
| 120L
| 60L
|
Power
| 16KW
| 14KW
|
Voltage
| 3Phases/380V(Can be customized)
|
|
Vacuum degree
| ≤-0.092Mpa
|
|
Detailed Images
Related Products
Packing&Shipping
1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept oder:Full container cargo load,Less container load
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
6.The tracking number will be provided to you once the consignment is shipped.
After Sales Service
1.All the products have one year guarantee.
2.Providing professional installation instructions and video of troubleshoot.
3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
4.When some problems can’t be solved by customers, our engineer can go to door to support.
