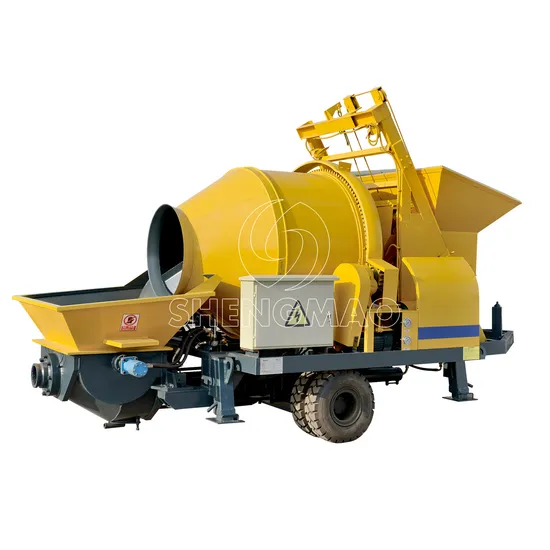

Portabel Diesel Concrete Pump with Mixer Jbs40r Concrete Mixer Pump Factory Price

Product Description

1. Brief introduction of our concrete pump with mixer
Concrete Pump with Mixer is a multi function machine which combines the function of concrete mixer and concrete pump. It can produce and deliver concrete. The mixer can be drum mixer, twin-shaft mixer and planetary mixer.

World famous brands of main parts are used for our concrete mixer pump, such as: Korean Kawasaki oil pump, Italy Manuli hydraulic hose, Japanese OMRON PLC, USA Parket seal etc.

The concrete mixer pump can be diesel powered or electricity powered. If you have power supply on job site, electricity powered concrete mixer pump can be shosen because it is more cost-saving.
2. Specification and pictures of our concrete pump with mixer
1) Diesel type

Model	JBS30R	JBS40R	LHB40R
Production Capacity (m3/h)	15	15	22.5
Concrete Mixer Type	Drum mixer	Drum mixer	Planetary mixer
Feeding Capacity of Mixer (L)	560	560	1200
Discharging Capacity of Mixer (L)	350	350	750
Max. Pumping Pressure (Mpa)	10	10	10
Diesel Engine Brand	Weifang	Weichai	Weichai
Diesel Engine Power (kw)	66	82	82
Max. Delivery Distance (V/H) (m)	80/300	80/300	80/300
Overall Size (mm)	5000*1500* 1800	5500*2300* 3150	3800*2200* 2100
Total Weight (kg)	4500	6000	5600

2) Electric type

Model	JBS30	JBS40	LHB40
Production Capacity (m3/h)	15	15	22.5
Concrete Mixer Type	Drum mixer	Drum mixer	Planetary mixer
Feeding Capacity of Mixer (L)	560	560	1200
Discharging Capacity of Mixer (L)	350	350	750
Max. Pumping Pressure (Mpa)	10	10	10
Motor Brand	Rongcheng	Rongcheng	Rongcheng
Motor Power (kw)	37	45	45
Max. Delivery Distance (V/H) (m)	80/300	80/300	80/300
Overall Size (mm)	5000*1500* 1800	4200*2300* 3150	3800*2200* 2100
Total Weight (kg)	4000	4500	4800

3. Special concrete pump with mixer
1) concrete pump with twin-shaft mixer
2) concrete pump with mixer and aggregate batching machine
Our Services
Pre-sale Service 1. Answering customers' questions, helping customers choose the most suitable machines;
2. Making design drawings as per customers' requirements;
3. Providing quotations. In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance. After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
Company Profile

Henan Shengmao Machinery Co., Ltd., founded in 2001, is located in Xingyang, Zhengzhou, Henan. Mainly engaged in the development, production, and sales of construction machinery. It covers an area of 80,000 m2 and has more than 700 employees, including 45 engineers, 80 professionals, 56 sales, and more than 500 technicians.
The main products are concrete mixer, concrete batching plant, asphalt plant, horizontal cement silo, batching machine, screw conveyor, brick making machine, and other construction machinery. At present, the products are exported to more than 90 countries and regions such as Russia, Uzbekistan, Philippines, Sri Lanka, Malaysia, Indonesia, Bangladesh, Australia, USA, Chile, Argentina, etc.

---
