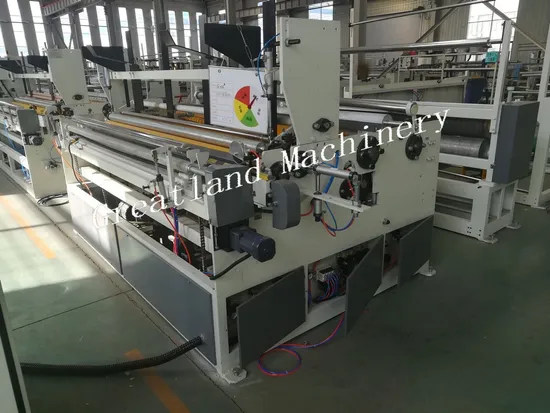

Automatic Perforated Toilet Paper Equipment Embossed Rewinding Kitchen Towel Converting Machine

Product Description

Automatic Toilet Paper/Kitchen Towel Rewinding & Cutting Production line
PRODUCTION DESCRIPTION
Machine features:
1. Suit to making toilet paper and kitchen towel.
2. PLC control,frequency conversion speed,touch screen operation
3. It is able to the core and coreless rewindering
4. Perforation pitch can be adjusted, perforation is clear
5. No paper, automatic shutdown
6. Stable running performance,high capacity
Specifications
1 .Paper grades: toilet paper, facial tissue, paper napkin, kitchen paper
2. Grammage: 13-35g/m3

Model	1575	1760	1880	2100	2400	2800	3000
Raw paper width	1575mm	2000mm	2100mm	2300mm	2500mm	2850mm	3000mm
Raw paper diameter	Φ1500mm(other specification can be appointed)
Raw paper core diameter	Φ76.2mm(other specification can be appointed)
Parameter setting	HMI
Programming control	PLC
Embossing	no embossing, single embossing, double embossing, steel to steel embossing(to be ordered)
Embossing bottom roller	felted roller, woolen roller, rubber roller, steel roller(to be ordered)
Working speed	0-200m/min
Final product diameter	40mm-135mm( other specification can be appointed)
Punching	Helix knife 2p punching
Power	4KW-15KW
Side pressing	independent pneumatic(additional order)
Unreeling	1-3 layers
Glue lamination	Optional

OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.
Within the quality guarantee, Greatland settle the problems on site.
ABOUT US
GLM was founded in 2010, and is an integrated company dedicated to the pulp and paper industry associated with planning, design, research, development, producing, delivery, testing and training. Besides, GLM was funded by the Pulp and Paper Design Institute, Pulp Equipment Mill and Paper-making Machinery Company, and in turn gathers together talents from each part. Furthermore, an impressive result has been achieved in recent years.
F&Q
Q.:Are you a factory or trading company?
A.:We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end.Fully check and test takes before shipment.
Q.:Where is your factory located?How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly.We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.:One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.

---
