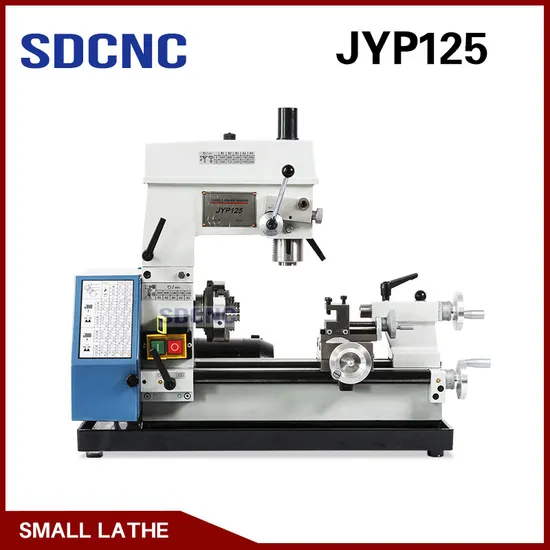

Jyp125 Manual Combo Mini Mill/Drill Combo Lathe Machine Multipurpose Drilling Lathe

Product Description

Product Application This machine can turning ,drilling round bar work piece,process out circle ,inner bore ,cutting ,threading , drill hole ,reaming ,popular with small Workshop ,development,DIY hobby ,school for training .
Main Features
1) most economic ,widely useful household machine.
2) V-way bed is precision ground,bed surface super hardened.
3) Spindle is supported by precision tapered bearing.
4) Lathe headstock is constantly oiled during operating.
5) Longitudinal axis power feed for threading .
1.most economic ,widely useful combination machine .
2.V-way bed is precision ground
3.Spindle is supported by precision tapered bearing
4.Lathe head stock is constantly oiled during operating
5.Belt drive mill head get quiet operation
6.Mill head can be titled +-90 degree
7.Power longitudinal feed follow threading
8.Adjustable gibs for slide ways
9.Equipped with lead screw cover and work table
10.Change gear has large feed and threading function
11.Tail stocks can be off set for turning tapers
Product Parameters

Turning function	Maximum workpiece rotation diameter on the bed	125mm
	Maximum workpiece length	180mm
	Maximum workpiece rotation diameter on the tool holder	60mm
	Spindle through hole diameter	9mm
	Spindle taper hole	MT.1
	Number of metric threads processed	8
	Machining metric thread pitch range	0.4-1.5mm
	Number of inch threads processed	8
	Processing inch thread pitch range	0.0028-0.005 1/n''
	Longitudinal feed level	2
	Longitudinal feed amount of tool holder per spindle revolution	0.07-0.14mm
	Tailstock sleeve travel	18mm
	Tailstock sleeve tapered hole	MT.1
	Spindle speed range and series	560-2500 r/min 5steps
	Motor Power	120W
Drilling and milling funtion	Maximum drilling diameter	6mm
	Distance from spindle end face to worktable	180mm
	Distance from spindle centerline to column surface	125mm
	Rotation angle of the main drilling and milling head box around the column	360°
	Spindle speed range and series	500-2500 r/min 10steps
	Drilling and milling head box vertical lifting stroke	60mm
	Working surface length and width	85*60mm
	Workbench T-slot width	8mm
	Spindle sleeve movement amount	40mm
OTHER	Weight	22/25kg
	Machine size	52*30*41cm
	Packing size	57*35*48cm

---
